CS5000 High Frequency Infrared Carbon and Sulfur Analyzer | Estimated Price: US$20,000

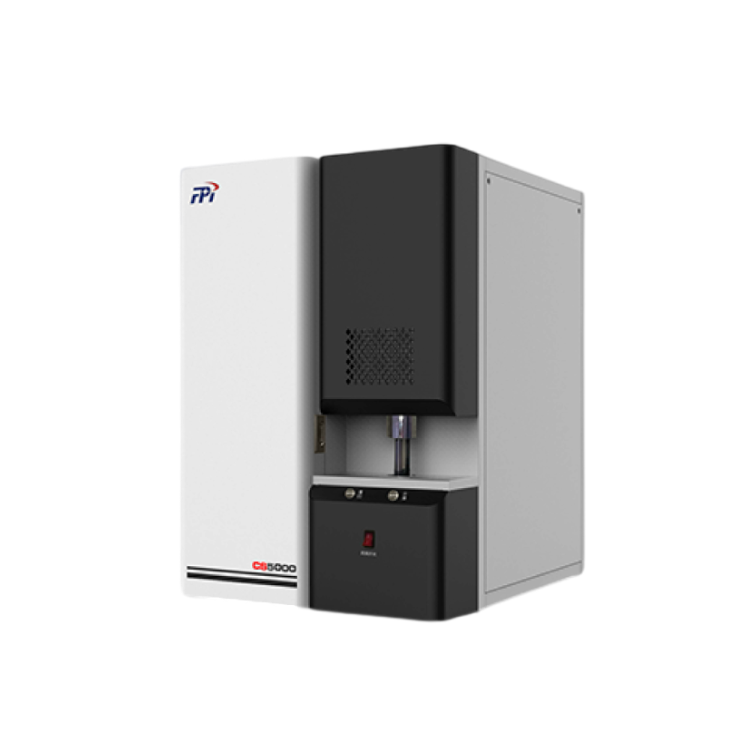

CS5000 High Frequency Infrared Carbon and Sulfur Analyzer

Features

The CS5000 determines carbon and sulfur in metals and other solid materials using high-frequency combustion and infrared analysis. Instrument software supports control, calibration, and data processing.

Estimated equipment price only. Shipping, import duties, installation, and logistics are additional and vary by destination and shipping method. We will contact you to confirm the total cost before processing your order.

Additional technical information

Infrared Carbon & Sulfur Analysis Software The Carbon and Sulfur Analysis Software is designed based on the Windows 7 operating system, featuring powerful functionality and a user-friendly interface. The software supports both instrument control and data processing, offering flexible performance to meet the needs of various users.

Modern graphical user interface (GUI) for intuitive operation Multivariable regression calibration curves, correlating true signal intensity to concentration User-defined multi-level authorization management, ensuring secure and customized access control Supports configuration with electronic balances from various brands Enables both batch weighing analysis and priority sample analysis modes Features a channel management system with full user-defined customization One-time setup of analysis channels or methods enables convenient and continuous use Sample management allows for the creation of an unlimited sample library in a single setup Samples can be directly recalled without the need for repeated data entry Supports the creation of multiple high-frequency operation modes (programmable temperature ramping) for precise combustion temperature control

Powered by a 32-bit ARM architecture processor with a built-in uClinux operating system for faster and more stable performance; Modular design separates system control and data acquisition for enhanced reliability; Capable of up to 200,000 data sampling points per second, delivering a strong foundation for high-precision analysis.

Equipped with a long-life infrared emitter and high-quality gold-plated gas cell for superior signal quality; High-precision narrowband optical filters and infrared sensors ensure consistent detection accuracy; Drift-free electronic design with built-in compensation for temperature, pressure, and flow variations enhances measurement stability; Optional dual-cell dual-range detection system supports both high and low concentration samples; Thermal insulation module available to minimize environmental temperature interference and ensure consistent performance.
