CDS Analytical 7550 Thermal Desorption Autosampler | Estimated Price: US$33,000

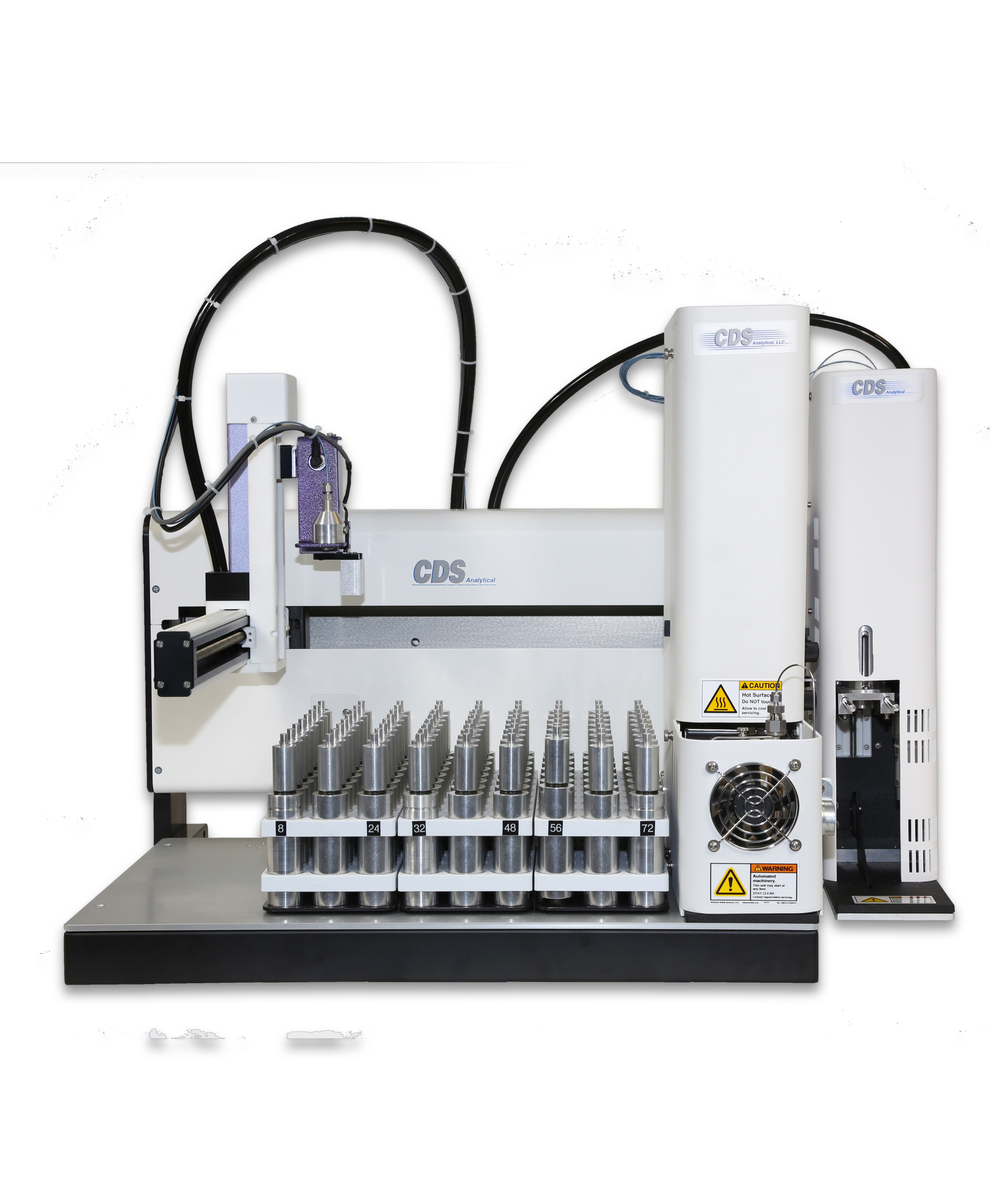

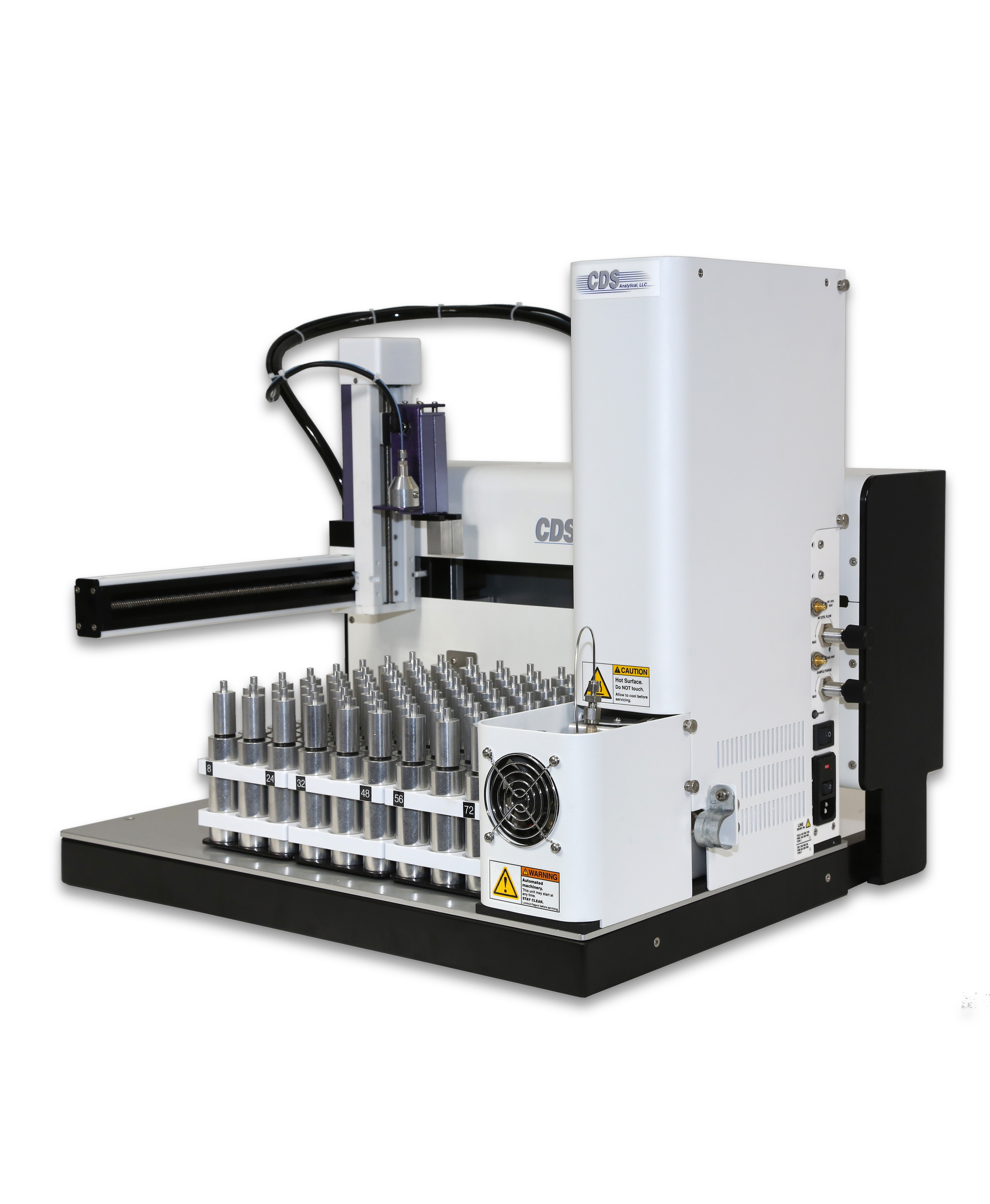

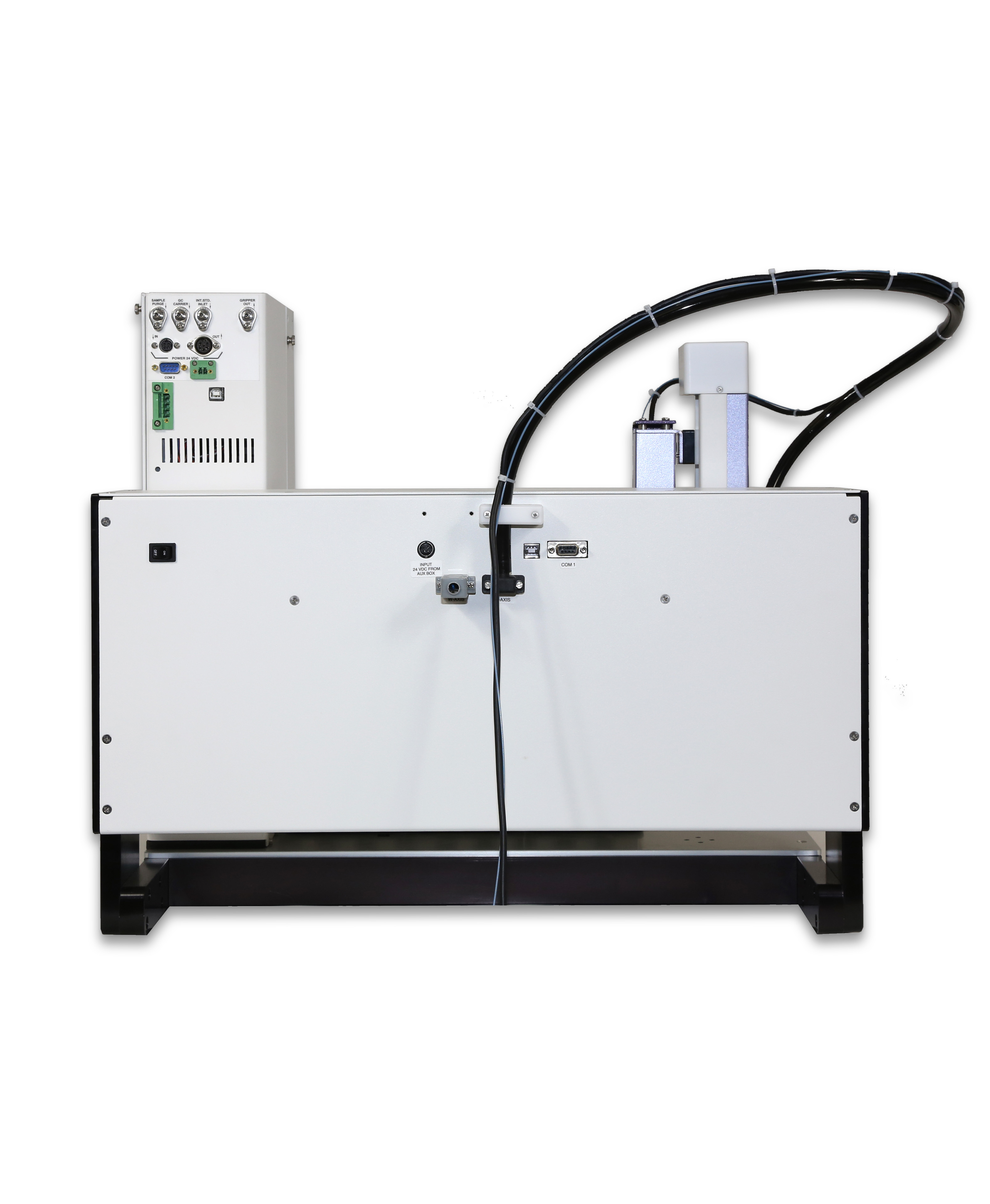

CDS Analytical 7550 Thermal Desorption Autosampler

The CDS 7550 is a thermal desorption autosampler for compatible chromatographic systems. User-adjustable tube handling calibration supports different standard tube arrangements.

Manufacturer-stated features and specifications

• TD Tube Positions: 72
• Tube Supported: 6 mm × 4.5″ and 1/4″ × 3.5″
• Concentrator: CDS 7000E required
• Concentrator Connection: Heated transfer line (350 °C)
• Internal Gas Addition: Yes (optional)
• Sample Saver: Yes (optional)
• Tube Heating Rate: 1000 °C/min
• Sample Desorption Temperature: Up to 400 °C
• Weight: 23 kg
• Dimensions (W × H × D): 56.9 cm × 48.2 cm × 62.2 cm
• Options: Purge and Trap

Estimated equipment price only. Shipping, import duties, installation, and logistics are additional and vary by destination and shipping method. We will contact you to confirm the total cost before processing your order.

Additional manufacturer details

Operating on the 2nd generation autosampler, the CDS 7550 is capable of 3D positioning within 1 mm, and thanks to its unique user-adjustable calibration, it could handle standard 3.5″ Thermal Desorption tube from any manufacturer. These features make CDS 7550 a Thermal Desorption autosampler available to the market. The Internal Standard module and Sample Saver module are optional. The CDS 7550 Thermal Desorption Tower could be purchased separately and added to your existing 7450 system to expand the sample introduction capability from Purge and Trap to Thermal Desorption. The switch process is engineered to be effortless.
