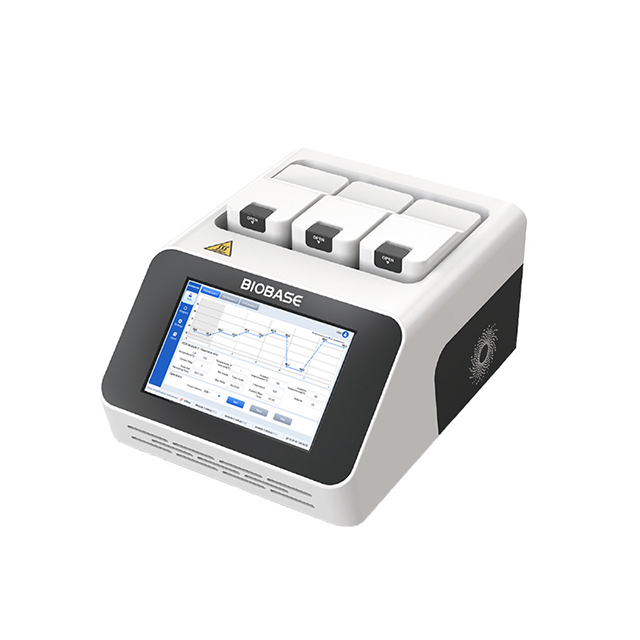

BIOBASE Thermal Cycler

Product overview

The gene amplification instrument is an instrument that performs nucleic acid amplfication by polymerase chain reaction. Mainly used in Medical institutions, clinical gene amplification testing laboratories that meet the requirements, scientific research institutes, universities, etc.

Key features

Product Description

Applications

Clinical laboratories and diagnostic workflows
Clinical, analytical, screening, or diagnostic laboratory workflows using the selected configuration

Technical specifications

Product Description
Brochure

Features:

1. Reliable performance of heating and cooling elements, high-performance temperature control system.
2. High-performance digital signal processor for precise temperature control.
3. Excellent temperature uniformity.

4. Rapid heating and cooling.

5. Color touch panel, easy to operate.
6. Support large-capacity program storage.

Model	TEC01	TEC03
Capacity	96	3*32
Reaction Volume	10~200μl
Tube Type	960.2ml PCR plate; 80.2ml PCR tube; 0.2ml single PCR tube	8*0.2ml PCR tube; 0.2ml single PCR tube
Block Temperature Range	4~105℃
Heat Lid Temperature Range	30~110℃
Max Heating Rate	4.0℃/s	7.7℃/s
Max Cooling Rate	3℃/s	4.6℃/s
Display Resolution	0.1℃
Temperature Accuracy	±0.3℃	±0.3℃
Temperature Uniformity	±0.3℃	±0.3℃
Block Material	Aluminum
Gradient Range	30~99℃	30~105℃
Temperature Differential Range	1~42℃	1~25℃
Program	A single program can be up to 30 steps, 99 cycles	A single program can be up to 99+ steps, 120 cycles
Display	7″ LCD	10.1″ LCD
Power Supply	AC 110V~220V, 50/60Hz
External Size(WDH)	398280257mm	445340240mm
Net Weight	11kg	15kg
Package Size(WDH)	495380380mm	560450440mm
Gross Weight	17kg	27.2kg

Download: 119 Thermal Cycler.jpg

Product video

An official product video is attached through the WooCommerce product-video metadata.

Ordering and configuration

Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
