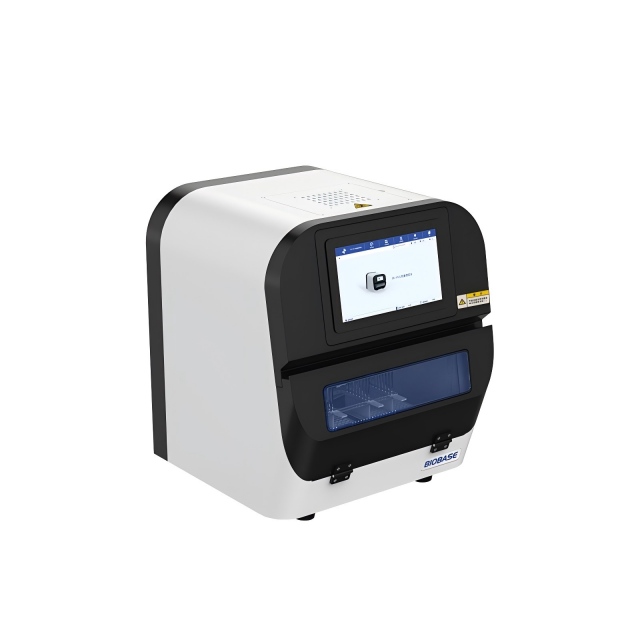

BIOBASE Nucleic Acid Extractor BK-HS32
Product overview
BK-HS32 is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment, matching nucleic acid extraction kits is used to automatically complete the extraction of sample nucleic acid, flexible, stable result, low cost, equipped with efficient filtration device and safety gate design, it can effectively avoid cross infection and ensure the quality of nucleic acid extraction., guarantee the quality of nucleic acid.
Key features
- Product Description
- Brochures
Applications
- Sterilization and infection-control workflows
- Sterilization, disinfection, and infection-control workflows
Technical specifications
- Product Description
- Brochures
Features:
1. Friendly user interface
Smart & intelligent display. With 10.1 inch LCD touch screen, Windows operating system.
2. Zero Aerosol Contamination
High efficiency HEPA filter and auto safety door protection function, effectively prevent aerosol contamination. HEPA filter and UV lamp replacement alarm functions.
3. UV Sterilization Lamp
With manual or set automatic sterilizing time operation, sterilize the UV lamp area easily and effectively.
4. Integrated Shaking & Heating Module
Mix deep wells while heating, saving extraction time.
5. Concave design heating belt fits the deep hot tube, ensure rapid and uniform temperature rise, improve the splitting and elution efficiency.
Technical Parameters:
|
Model |
BK-HS32 |
|
Extraction Method |
Magnetic beads |
|
Sample Capacity |
32 |
|
Processing Volume |
20~1000μl |
|
Extraction Time |
15~60min |
|
Magnetic Bead Recovery |
≥98% |
|
Extraction Difference Between Wells |
＜3% |
|
Magnetic Rod Flux |
4500Gs |
|
Temperature Range |
Adjustable heating function, RT~100 ℃ |
|
Oscillating Mixing |
Vertical mixing, low, medium, high three gears adjustable |
|
Module Station |
2 |
|
Protection Function |
Star up self-checking, power off protection, high temperature alarm, over temperature protection, motor protection |
|
Disinfection Method |
8W UV lamp |
|
Illuminating Lamp |
3.4W LED lamp |
|
Operation Interface |
10.1 inch capacitive touch screen/Windows system |
|
Barcode Scanning Function |
Optional external barcode scanner |
|
Project Storage |
>1000 |
|
Interface |
2 USB port, optional LAN port |
|
Contamination Control |
Class II HEPA filter can effectively filter the internal aerosol and prevent cross contamination |
|
IAP Function |
Firmware can be updated online at any time |
|
Power Supply |
AC100~240V, 50Hz/60Hz |
|
External Size(W*D*H) |
460*470*480mm |
|
Package Size(W*D*H) |
538*538*750mm |
|
Gross Weight |
37kg |
Download: 99-100 Nucleic Acid Extraction System-BKHS32.jpg
Product video
An official product video is attached through the WooCommerce product-video metadata.
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
