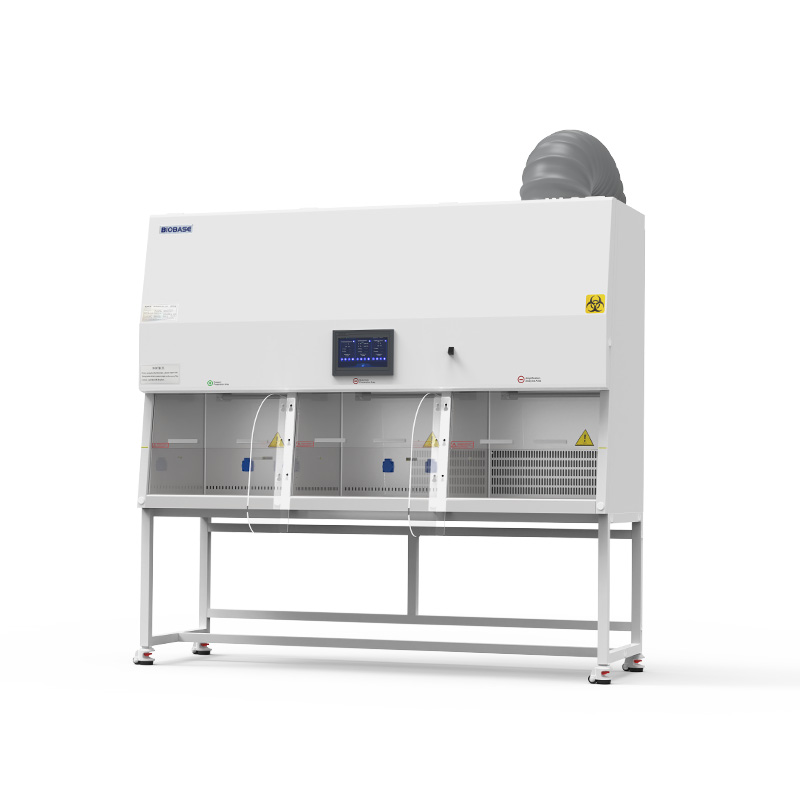

BIOBASE Multi-functional Workstation

Product overview

The Mini PCR Workstation is the world’s exclusive nucleic acid detection workstation, specially developed for fever clinics and small clinical laboratories. Integrate traditional PCR laboratory functions into one device. Allow more small laboratories to have PCR detection capabilities.

Key features

Product Description
Brochures

Applications

Clinical laboratories and diagnostic workflows
Research, medical, and industrial laboratories
Water quality and environmental testing
Sample separation and centrifugation workflows in research, clinical, and industrial laboratories
Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials

Technical specifications

Product Description
Brochures

Features:

1. Global exclusive.

2. Small dimension, save space, economical and convenient.

3. Automatic air speed adjustable with filter block.

4. With memory function in case of power-failure.

5. Interlock function: UV lamp and front window, UV lamp and blower, fluorescent lamp, blower and front window.

6. Audio and visual alarm: Filter replacement, window over height, abnormal air flow velocity etc.

7. Time reserve function: This can set the UV lamp and fan working time.

Reagent Preparation Area:

Positive pressure, vertical laminar flow design, equipped with primary filter and HEPA filter, which can protect the reagent preparation from external pollution and protect the reagent.

Specimen Preparation Area:

Negative pressure, the air inlet is through the front window glass door, the bottom of the operation area is returned to the air, and the top is exhausted, the upper and lower two HEPA filters are equipped to protect personnel from harmful aerosol infection and protect samples from external pollution.

Amplification Analysis Area:

Negative pressure, the air inlet is through the front window glass door, the bottom of the operation area is returnedto the air, and the top is exhausted, and the HEPA filter can protect both the personnel and the environment.

Model	PCR1600	PCR2100	PCR2500
External Size(LWH)mm	16007102100mm	21007102000mm	25008502100mm
Reagent Preparation Area	Operating Area Size(LWH)	440560510mm	640560510mm	640710610mm
Pressure	Positive
Airflow Velocity(m/s)	0.3~0.45
Airflow Volume(m3/h)	190~290	290~430	380~560
Exhaust Type	/
Specimen Preparation Area	Operating Area Size(LWH)	560560510mm	660560510mm	1060710610mm
Pressure	Negative
Airflow Velocity(m/s)	Downflow: 0.33±0.025 Inflow: 0.53±0.025
Airflow Volume(m3/h)	210	250	400
Exhaust Type	Type A2, 30% exhaust, 70% recirculation
Amplification Analysis Area	Operating Area Size(LWH)	440560510mm	640560510mm	640710610mm
Pressure	Negative
Airflow Velocity(m/s)	≥0.4
Airflow Volume(m3/h)	≥160	≥180	≥180
Exhaust Type	100% exhaust	100% exhaust	100% exhaust
ULPA Filter	Four, 99.999% efficiency at 0.12μm
Clean Level	Class 100(ISO Class 5)	Class 100, except amplification analysis area
Front Window	Manual, toughened glass, anti UV
Max Opening	400mm	480mm
Noise	≤67dB(A)
Vibration	≤5μm
UV Lamp	8W*3, UV timer, UV life indicator	15W*3	30W1, 15W2
LED Lamp	4W*6	8W*6	8W4, 12W2
Illumination(lx)	≥500( Each area)	≥650(Each area)
Sockets	The load of two sockets(Each area): 500W, total 6 sockets
Display	Touch screen
Control System	Microprocessor
Visual and Audio Alarm	Filter replacement, window over height, abnormal air flow velocity
Work Surface Height	750mm
Material	Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption	600W, total 2100W(With load)	1000W, total 2500W
Standard Accessory	LED lamp6, UV lamp4, Windproof plate2(Only for PCR2100/2500), Waterproof sockets6
Package Size(WDH)	17509801400mm	22509801400mm	265011201500mm
Gross Weight	400kg	450kg	500kg

Multifunctional Workstation Product List

Item	Name	Model	Quantity
Reagent Preparation Area	Pipette	0.5~10μl	1
Pipette	10~100μl	1
Pipette	100~1000μl	1
Centrifuge	MINI-7	1
Mixer	BJPX-VW	1
Tips	10μl, 100μl, 1000μl	/
Centrifuge tube	1.5ml	/
8-strip tube	0.2ml	/
QPCR kit	Covid-19	/
Specimen Preparation Area	Pipette	0.5~10μl	1
Pipette	10~100μl	1
Pipette	100~1000μl	1
Disposable virus sampling collector(One step method)	/	/
Tips	10μl, 100μl, 1000μl	/
Centrifuge tube	1.5ml	/
Centrifuge	MINI-7	1
Mixer	BJPX-VW	1
Nucleic acid extraction system(only for PCR2500)	BNP32 or BNP8	1
Amplification Analysis Area	QPCR	LEIA-X4	1
Other Related Equipment	Biosafety transport box	BTB-L5	1
-25℃ freezer	BDF-25V270	1
-86℃ freezer	BDF-86V158	1

Download: 153-154 Mini PCR Workstation.jpg155-156 Mini PCR Workstation.jpg
