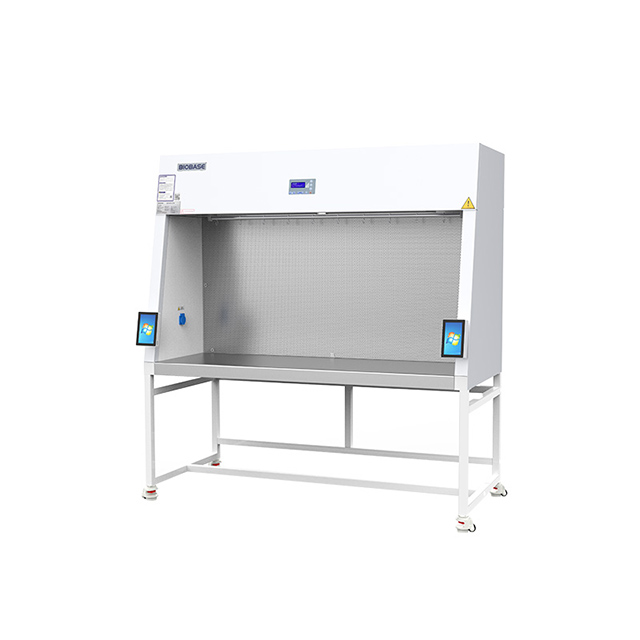

BIOBASE Horizontal Laminar Flow Cabinet(PIVAS)
Available in stock
BIOBASE Horizontal Laminar Flow Cabinet(PIVAS) is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Air Protection Products > Laminar Flow Cabinet |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
BIOBASE Horizontal Laminar Flow Cabinet(PIVAS)
Product overview
The Horizontal Laminar Flow Cabinet is a high-efficiency clean bench that provides a sterile and particle-free working environment by directing filtered air horizontally across the work surface.
Key features
- BBS-H1500A BBS-H1800A
- Brochures
Applications
- Water quality and environmental testing
- Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials
- Air-protection, containment, clean-air, or controlled laboratory work
- Sterilization, disinfection, and infection-control workflows
Technical specifications
- BBS-H1500A BBS-H1800A
- Brochures
Features：
1. Dedicated Clean Bench.
2. Integrated In-Chamber Scanning System&Camera
Embedded within the laminar airflow work area to facilitate real-time verification of medication preparations and barcode scanning, ensuring accuracy in compounding sterile solutions.
3. Adjustable Horizontal Rods&Hooks
Strategically positioned within the work zone to optimize workflow efficiency during aseptic compounding procedures.
4. UV Lamp&Fan Pre-Scheduling Function
Enables automated disinfection cycles(UV activation) and air purification(HEPA filtration) before/after work shifts, ensuring a sterile environment without manual intervention.
5. Safety Interlock System
Prevents simultaneous operation of UV lamps with lighting or fan systems, eliminating risks of accidental exposure to ultraviolet radiation.
6. UV Lamp Delay Activation(5s~20s)
Automatically initiates a countdown timer upon activation, providing operators sufficient time to exit the work area before UV exposure begins.
7. Pressure Unit Conversion Function
Supports seamless switching between Pascal(Pa) and air velocity units(m/s), enabling real-time monitoring of airflow parameters critical for maintaining ISO Class 5 environments.
|
Model |
BBS-H1500A |
BBS-H1800A |
|
External Size(W*D*H) |
1500*870*1740mm |
1800*870*1940mm |
|
Internal Size(W*D*H) |
1370*550*600mm |
1670*550*800mm |
|
Work Surface Height |
800mm |
|
|
Airflow Mode |
Horizontal laminar flow |
|
|
Applicable Number of People |
Double-person single-side |
|
|
Display |
LCD display |
|
|
Airflow Velocity |
0.3~0.45m/s |
|
|
Material- Working Area |
304 stainless steel |
|
|
Material-Main Body |
1.0mm cold-rolled steel with anti-bacteria powder coating |
|
|
Pre-Filter |
Polyester fiber, washable |
|
|
HEPA Filter |
One, 99.995% efficiency at 0.3μm |
|
|
Noise |
≤65dB(A) |
|
|
Illumination |
≥300lx |
|
|
Vibration |
≤5μm(rms) |
|
|
Safety |
Colonies Number ≤0.5CFU/30min |
|
|
Clean Level |
ISO Level 5(Class 100) |
|
|
Power Supply |
AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) |
|
|
Consumption |
400W |
600W |
|
LED Lamp |
16W*1 |
16W*2 |
|
UV Lamp |
30W*1 |
20W*2 |
|
Standard Accessories |
LED lamp; UV lamp; Base stand; Waterproof socket*2; Hook*10 |
|
|
Optional Accessory |
Electric height adjustable base stand |
|
|
Package Size(W*D*H) |
1640*1050*1350mm |
1940*1050*1550mm |
|
Gross Weight |
225kg |
280kg |
Download: 66-67 Horizontal Laminar Flow Cabinet（PIVAS）BBS-H1500A BBS-H1800A.jpg
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
