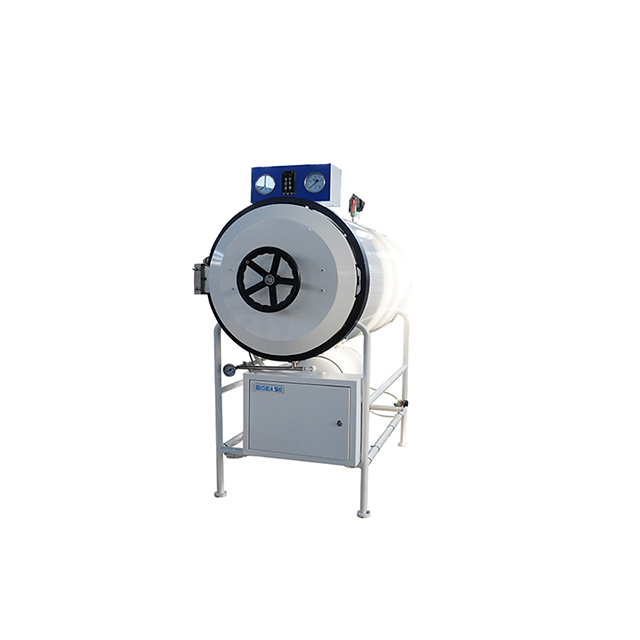

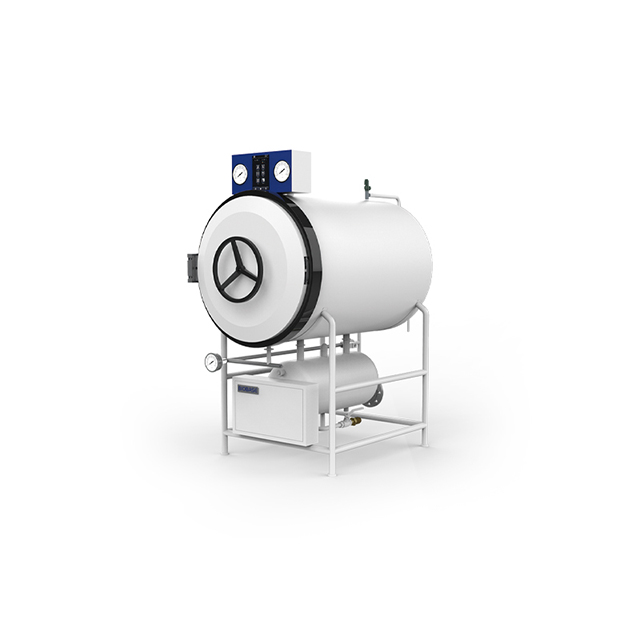

BIOBASE Horizontal Cylindrical Pressure Autoclave
Product overview
Large pressure steam sterilizer is a device that uses saturated steam to sterilize articles. The structure of the sterilizer is round, the steam supply mode is its own steam generator, the door of the sterilizer is a single door.
Key features
- Product Description
Applications
- Water quality and environmental testing
- Sterilization and infection-control workflows
- Sterilization, disinfection, and infection-control workflows
Technical specifications
- Product Description
- Brochure
Features:
1. Brand New Operation Interface
The LCD touch screen can display temperature, time, operating status, and fault alarm in real time, making the sterilization information more intuitive and clear, and it is convenient for users to observe the operating status of the equipment.
2. Drying Function
With auxiliary drying function, it is used to dry sterilized items.
3. Protection Device
Equipped with over-temperature and over-pressure automatic protection devices.
4. Steam Generator
The equipment has a built-in high-speed steam generator, which saves time and effort without external steam source.
5. Automatic Operation of the Program
The equipment is externally connected to the water source, and there is no need for manual water replenishment. After the customer selects the program, the equipment can complete the entire process from water injection to drying without human intervention. After the program is completed, the sound prompts that the sterilization is complete.
6. Programs: Wrapped, unwrapped, dressing, rubber, drying, DIY solid.
|
Model |
BKQ-H150 |
BKQ-H200 |
BKQ-H300 |
BKQ-H400 |
|
Capacity |
150L |
200L |
300L |
400L |
|
Designed Pressure |
0.28MPa |
|||
|
Built-in Steam Generator |
Yes |
|||
|
Rated Working Pressure |
0.12MPa/0.23MPa |
|||
|
Rated Operating Temperature |
121℃/134℃ |
|||
|
Ambient Temp. |
5~40℃ |
|||
|
Adjustable Drying Temperature Range |
115~134℃ |
|||
|
Temp. Precision |
0.1℃ |
|||
|
Sterilization Timing Adjustable Range |
1~99min |
|||
|
Adjustable Drying Timing Range |
1~99min |
|||
|
Vacuum System |
No |
|||
|
Chamber Material |
304 stainless steel |
|||
|
Chamber Size |
Ф500*820mm |
Ф500*1050mm |
Φ650*935mm |
Ф650*1235mm |
|
Altitude |
≤2500m |
|||
|
Standard Accessories |
Net rack*1, Net lid*1 |
|||
|
Consumption |
10KW |
15KW |
||
|
Power Supply |
AC380V, 50/60Hz; AC220V, 50/60Hz(Three phase); AC220V, 50/60Hz(Note: Be careful when ordering this voltage,the current is close to 75A) Wiring method：Air switch |
|||
|
External Size(W*D*H) |
680*1270*1550mm |
680*1500*1550mm |
815*1550*1750mm |
815*1850*1750mm |
|
Net Weight |
230kg |
250kg |
340kg |
385kg |
|
Package Size(W*D*H) |
820*1500*1910mm |
820*1730*1910mm |
950*1750*2030mm |
950*2000*2030mm |
|
Gross Weight |
320kg |
355kg |
475kg |
535kg |
Download: 11-12 Horizontal Cylindrical Pressure Autoclave.jpg
Product video
An official product video is attached through the WooCommerce product-video metadata.
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
