BIOBASE High And Low Temperature Test Chamber | Estimated Price: US$1,499–2,225 | Request a Quote
Available in stock

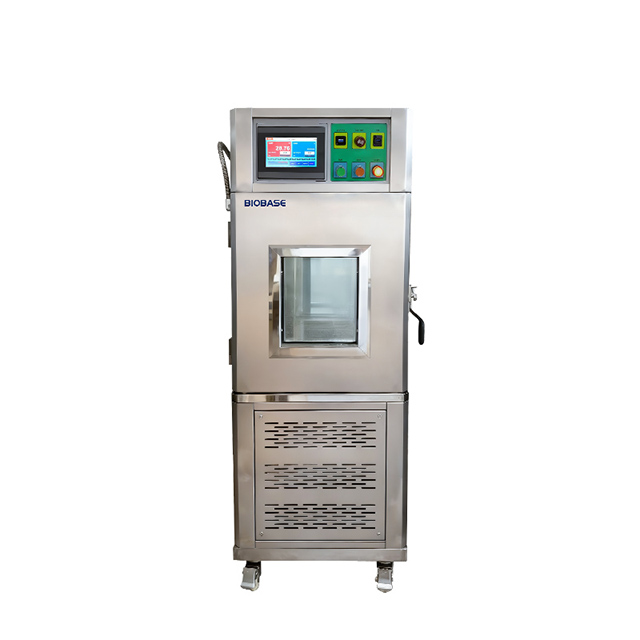

The BIOBASE High and Low Temperature Test Chamber is designed to provide precise environmental simulation for testing the reliability and durability of products under extreme temperature conditions.
Estimated equipment price only. Shipping, import duties, installation, and logistics are additional and vary by destination and shipping method. We will contact you to confirm the total cost before processing your order.
Scientific China
StorePeople Also Viewed
-
SonoStar 3CL 2in1 palm doppler ultrasound scanner — Estimated US$1,610
-
SonoStar 4CR biplane rectal palm doppler ultrasound scanner — Estimated US$2,400
-
SonoStar 4T transvaginal palm doppler ultrasound scanner — Estimated US$1,800
-
SonoStar 4T transvaginal palm doppler ultrasound scanner — Estimated US$1,800
-
SonoStar 4PA phased array palm doppler ultrasound scanner — Estimated US$1,800
-
SonoStar 4M micro-convex palm doppler ultrasound scanner — Estimated US$1,800
| Product Category | Laboratory Equipment > Incubator & Oven |
|---|
Product Enquiry
Description
The BIOBASE High and Low Temperature Test Chamber is designed to provide precise environmental simulation for testing the reliability and durability of products under extreme temperature conditions.
Technical specifications
Features:
1. The rectangular double-layer glass observation window can be used to observe the test product during the test. The observation window has an anti-sweat electric heater device to prevent condensation, and a high-brightness PL fluorescent lamp to keep the interior of the box illuminated.
2. It has a test hole for external test power cord or signal line and up and down adjustment of the storage tray.
3. The double-layer insulation of the box door is tight and airtight, which can effectively isolate the internal temperature leakage.
4. The special temperature rise and fall rate controllable technology realizes the continuous and arbitrary adjustment of the rise and fall rate.
5. The compressor circulation system can effectively remove the lubricating oil between the condenser tube and the capillary tube, and the whole series adopts environmentally friendly refrigerant.
6. The controller adopts imported LCD display screen, which can display the measured value, set value and time at the same time.
7. The controller has multi-segment program editing, humidity and temperature can be controlled quickly(QUICK) or slope(SLOP).
8. The built-in mobile sliding transport is easy to move and place and has a strong positioning screw to fix the position.
Technical Parameters:
|
Model |
BJPX-HL50C/D |
BJPX-HL80C/D/E |
BJPX-HL100C/D/E |
BJPX-HL150C/D/E |
BJPX-HL225C/D/E |
BJPX-HL408C/D/E |
BJPX-HL800C/D/E |
BJPX-HL1000C/D/E |
|
Capacity |
50L |
80L |
100L |
150L |
225L |
408L |
800L |
1000L |
|
Temperature Range |
Low temperature: C: -20℃; D: -40℃; E: -60℃ High temperature: 150℃ |
|||||||
|
Humidity Range |
20~98% RH |
|||||||
|
T&H Analytical Accuracy |
±0.1℃, ±1%RH |
|||||||
|
T&H Uniformity |
±1℃, ±2%RH |
|||||||
|
T&H Control Accuracy |
±0.5℃, ±1%RH |
|||||||
|
T&H Fluctuation |
±2℃, ±3%RH |
|||||||
|
Heating/Cooling Rate |
Heating: 1~3°C/min (avg.); cooling: 0.7~1°C/min (avg.) |
|||||||
|
Inner & Outer Material |
SUS304 |
|||||||
|
Insulation Material |
High temperature resistant high-density ethyl chloroformate foam insulation material |
|||||||
|
Cooling System |
Air cooling, single compressor: -20~-40℃ Air cooling, water cooling, double compressors: -60~-70℃ |
|||||||
|
Safety Protection |
No-fuse switch, compressor overload protection switch, refrigerant high/low pressure protection switch, over-humidity and over-temperature protection switch, fuse, fault alarm system |
|||||||
|
Power Supply |
AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) Wiring method: air switch |
AC 380V, 50/60Hz Wiring method: air switch |
||||||
|
Standard Accessory |
Observation window, 50mm test hole, PL box light, partition, wet and dry ball gauze, RS232, USB interface |
|||||||
|
Optional Accessory |
Operating hole with built-in glass door |
|||||||
|
Internal Size(W*D*H)mm |
350*350*400 |
400*400*500 |
500*400*500 |
500*500*600 |
600*500*750 |
800*600*850 |
1000*800*1000 |
1000*1000*1000 |
|
External Size(W*D*H)mm |
580*980*1350 |
950*1050*1400 |
1050*1050*1400 |
1050*1150*1500 |
1150*1150*1650 |
1350*1250*1750 |
1520*1550*1900 |
1550*1650*1900 |
|
Package Size(W*D*H)mm |
700*1200*1500 |
1150*1250*1700 |
1250*1250*1700 |
1250*1350*1800 |
1350*1350*1950 |
1550*1450*2050 |
1750*1650*2200 |
1750*1850*2200 |
|
Net Weight |
180kg |
240kg |
250kg |
260kg |
290kg |
330kg |
380kg |
410kg |
|
Gross Weight |
200kg |
270kg |
280kg |
290kg |
325kg |
365kg |
415kg |
435kg |
