BIOBASE Freezer Racks
Available in stock
BIOBASE Freezer Racks is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Lab & Medical Cryogenic Refrigeration Equipment > Others |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description

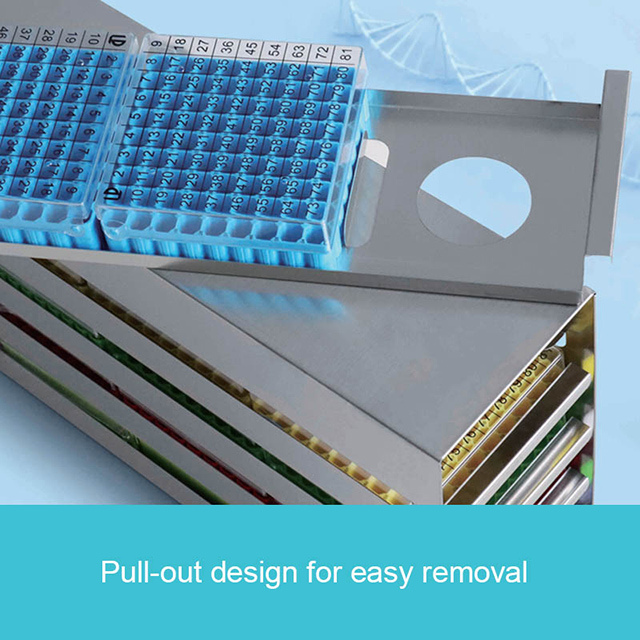

BIOBASE Freezer Racks
Product overview
Freezer Racks are essential laboratory storage solutions designed to efficiently organize and securely hold sample tubes, vials, cryogenic boxes, and other containers in ultra-low temperature freezers.
Key features
- Product Description
- Brochures
Applications
- Research, medical, and industrial laboratories
- Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials
Technical specifications
- Product Description
- Brochures
Features:
1. Made of corrosion-resistant 304 stainless steel for repeated freeze-thaw and long-term storage of samples.
2. It can be used for sample storage in ultra-low temperatures.
3. It can withstand temperature range of -196℃ to 800℃.
4. It is suitable for 1-inch and 2-inch freezer boxes.
5. It is suitable for most standard refrigerators and liquid nitrogen containers.
6. It can be customized.
|
Model |
Specification |
Material |
Size(W*D*H)(mm) |
Freezer Box Size(mm) |
Freezer Tube |
|
BK-LD6 |
6 layers |
304 stainless steel |
142*140*344 |
≤133*133*52 |
1.5~2ml |
|
BK-LD8 |
8 layers |
304 stainless steel |
142*140*455 |
≤133*133*52 |
1.5~2ml |
|
BK-LD10 |
10 layers |
304 stainless steel |
142*140*568 |
≤133*133*52 |
1.5~2ml |
|
BK-LD4X3 |
4 layers and 3 columns |
304 stainless steel |
420*140*242 |
≤133*133*52 |
1.5~2ml |
|
BK-LD4X4 |
4 layers and 4 columns |
304 stainless steel |
560*140*242 |
≤133*133*52 |
1.5~2ml |
|
BK-LD5X3 |
5 layers and 3 columns |
304 stainless steel |
420*140*290 |
≤133*133*52 |
1.5~2ml |
|
BK-LD5X4 |
5 layers and 4 columns |
304 stainless steel |
560*140*295 |
≤133*133*52 |
1.5~2ml |
|
BK-LD5X5 |
5 layers and 5 columns |
304 stainless steel |
685*140*295 |
≤133*133*52 |
1.5~2ml |
|
BK-LD6X2 |
6 layers and 2 columns |
304 stainless steel |
290*140*348 |
≤133*133*52 |
1.5~2ml |
|
BK-LD6X3 |
6 layers and 3 columns |
304 stainless steel |
420*140*348 |
≤133*133*52 |
1.5~2ml |
|
BK-LD7X5 |
7 layers and 5 columns |
304 stainless steel |
685*140*406 |
≤133*133*52 |
1.5~2ml |
Compatible Freezer Models
|
Matching Model |
Layer Count |
Quantity Per Layer |
Freezer Rack |
Total Capacity |
|
BDF-86H60 |
1 |
4 |
BK-LD6 |
4 |
|
BDF-86H128 |
1 |
6 |
BK-LD10 |
6 |
|
BDF-150H128 |
1 |
9 |
BK-LD10 |
9 |
|
BDF-150H138 |
1 |
12 |
BK-LD8 |
12 |
|
BDF-150H226 |
1 |
20 |
BK-LD8 |
20 |
|
BDF-86V58 |
1 |
2 |
BK-LD6X2 |
2 |
|
BDF-86V65 |
1 |
2 |
BK-LD5X3 |
2 |
|
BDF-86V65 |
1 |
2 |
BK-LD6X3 |
2 |
|
BDF-86V100 |
2 |
2 |
BK-LD5X3 |
4 |
|
BDF-86V108 |
2 |
3 |
BK-LD4X3 |
6 |
|
BDF-86V168/168T/168B/168BM |
3 |
3 |
BK-LD4X3 |
9 |
|
BDF-86V348/348T/348B/348BM |
4 |
3 |
BK-LD4X4 |
12 |
|
BDF-86V408D/418T/418BD |
4 |
4 |
BK-LD4X4 |
16 |
|
BDF-86V588/588D//608T/608BD |
4 |
4 |
BK-LD5X5 |
16 |
|
BDF-86V728 |
4 |
6 |
BK-LD5X4 |
24 |
|
BDF-86V838/838D |
4 |
6 |
BK-LD5X5 |
24 |
|
Matching Model |
Freezer Box Specification |
Matching Freezer Box Size(mm) |
Quantity of Freezer Boxes |
Quantity of Samples (100-well freezer box) |
|
BDF-86H60 |
2 inches |
≤133*133*52 |
24 |
2400 |
|
BDF-86H128 |
2 inches |
≤133*133*52 |
60 |
6000 |
|
BDF-150H128 |
2 inches |
≤133*133*52 |
90 |
9000 |
|
BDF-150H138 |
2 inches |
≤133*133*52 |
96 |
9600 |
|
BDF-150H226 |
2 inches |
≤133*133*52 |
160 |
16000 |
|
BDF-86V58 |
2 inches |
≤133*133*52 |
24 |
2400 |
|
BDF-86V65 |
2 inches |
≤133*133*52 |
30 |
3000 |
|
BDF-86V65 |
2 inches |
≤133*133*52 |
36 |
3600 |
|
BDF-86V100 |
2 inches |
≤133*133*52 |
60 |
6000 |
|
BDF-86V108 |
2 inches |
≤133*133*52 |
72 |
7200 |
|
BDF-86V168/168T/168B/168BM |
2 inches |
≤133*133*52 |
108 |
10800 |
|
BDF-86V348/348T/348B/348BM |
2 inches |
≤133*133*52 |
192 |
19200 |
|
BDF-86V408D/418T/418BD |
2 inches |
≤133*133*52 |
256 |
25600 |
|
BDF-86V588/588D//608T/608BD |
2 inches |
≤133*133*52 |
400 |
40000 |
|
BDF-86V728 |
2 inches |
≤133*133*52 |
480 |
48000 |
|
BDF-86V838/838D |
2 inches |
≤133*133*52 |
600 |
60000 |
Download: 60-61 Freezer Racks.jpg
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
