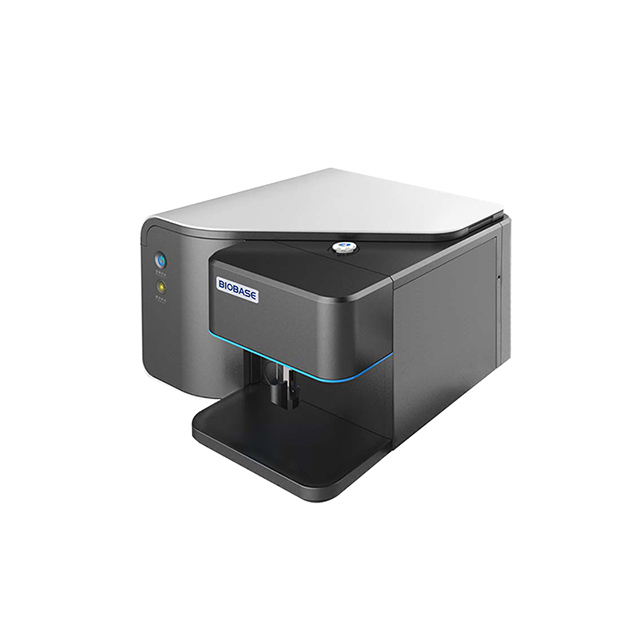

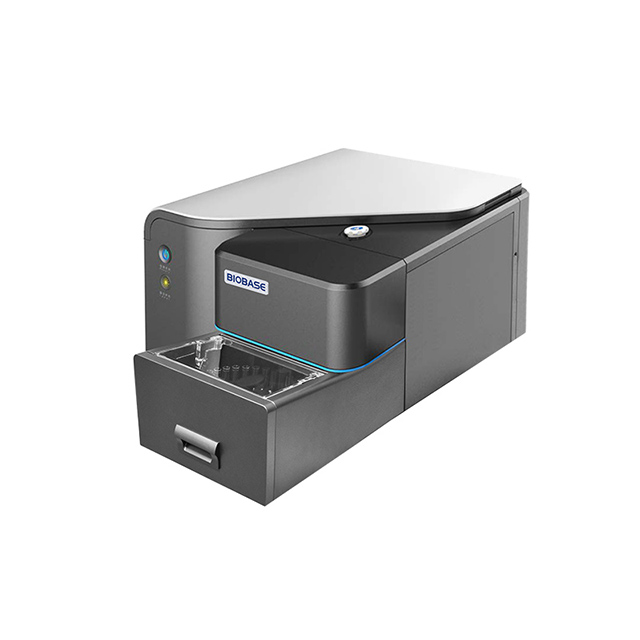

BIOBASE Flow Cytometer B7H FlowCyte B7
Available in stock
BIOBASE Flow Cytometer B7H FlowCyte B7 is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Clinical&Analytical Instrument > Flow Cytometer |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
BIOBASE Flow Cytometer B7H FlowCyte B7
Product overview
Flow cytometer is a high-precision analytical instrument widely used in life sciences, medicine, immunology, and other fields. It integrates fluid mechanics, optics, electronics, and computer technology to rapidly analyze and sort individual cells (or particles) in a liquid suspension. By detecting scattered light signals and fluorescent signals from cells labeled with specific probes, the instrument can quantitatively measure multiple physical and chemical properties of cells (such as size, granularity, surface antigens, and intracellular components) at a speed of thousands to tens of thousands of cells per second, enabling high-throughput, multi-parameter, and non-destructive cellular analysis.
Key features
- Product Description
Applications
- Clinical laboratories and diagnostic workflows
- Research, medical, and industrial laboratories
- Blood banks and transfusion services
- Air-protection, containment, clean-air, or controlled laboratory work
Technical specifications
- Product Description
- Brochure
Features:
Recommended Reagent Information:
|
Item |
Recommended Reagent |
Application Department |
|
Lymphocyte Subset T Analysis |
CD45 CD4 CD3 CD8 |
Clinical Laboratory Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Pediatrics Blood Specialty |
|
Lymphocyte Subset T/B/NK Analysis |
CD45 CD3 CD16 CD56 CD19 |
|
|
Absolute Count of CD4+T Lymphocyte |
CD45 CD4 CD3 CD8 |
CDC (AIDS) Infectious Disease Department |
|
Cytokine Th1/Th2/Th17 Analysis |
Th1: IL-2, IFN-γ, TNF-α Th2: IL-4, IL-6, IL-10 Th17: IL-17 |
Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Organ Transplantation Respiratory Department |
|
HLA-B27 Detection for AS |
HLA-B27-FITC HLA-B7-PE IgG2a-FITC IgG1-PE |
Department of Rheumatology and Immunology Orthopedics |
|
DFI Analysis |
Acridine orange (AO) Staining Solution |
Reproductive Department Infertility Department Reproductive Medicine Centre |
Technical Parameters:
|
Model |
FlowCyte B7H |
FlowCyte B7 |
|
Laser |
488nm solid（60mW） |
|
|
Detector |
FSC, SSC, FL1-FL5 |
|
|
Fluorescence Channel |
FL1:525/50（FITC） FL2:585/40（PE） FL3:630/30（PE-Texas Red/ECD/PI） FL4:697/60（PerCP/PE-Cy5/PE-Cy5.5） FL5:780/60（PE-Cy7） |
|
|
Fluorescence Sensitivity |
FITC≤50 MESF, PE≤30MESF |
|
|
Fluorescence Linearity |
≥0.99 |
|
|
FSC Sensitivity |
≤1μm |
|
|
Test Particle Size |
0.2~50μm |
|
|
Carry Over |
≤0.5% |
|
|
Instrument CV |
FSC and all FL channel CV less than 2% |
|
|
FSC and SSC CV |
Can separate red blood cells and platelet, can separate white blood cells into 3 groups |
|
|
Test Speed |
≥46000 cells/s |
|
|
Minimum Sample Vol |
90μL |
|
|
Measure Range |
Maximum Support 10⁷ |
|
|
Threshold |
Double threshold, minimum cells fraction |
|
|
Fluorescence Compensation |
Support auto online compensation, offline compensation and visualized compensation |
|
|
Item Template |
Support Item template, acquisition conditions/fluorescence compensation one-click use |
|
|
Intake Method |
Manual intake Rotary wheel auto-sampling with auto-mixing function:32tests/wheel |
|
|
Liquid Storage Station |
Sheath bottle, waste bottle, shutdown liquid bottle 2L, cleaning liquid bottle 0.5L |
|
|
Software |
English/Chinese |
|
|
PC |
Dell（CPU i5/8G DDR4/1T hard disk）+Dell 27 inches monitor |
|
|
Power Supply |
AC220/110V±10%, 50/60Hz |
|
|
Auto-sampler |
/ |
32-postions autosampler(Stanndard) |
|
External Size(W*D*H) |
430*500*330mm |
650*500*330mm |
|
Net Weight |
30kg |
35kg |
|
Packing Size(W*D*H) |
Main Instrument: 860*635*648mm Accessories: 860*680*810mm Reagent: 405*270*400mm |
|
|
Gross Weight |
Main Instrument: 56kg Accessories: 54kg Reagent: 16kg |
Download：85-86 Flow Cytometer FlowCyte B7H&FlowCyte B7.jpg
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
