BIOBASE ELISA Microplate Reader
Available in stock
BIOBASE ELISA Microplate Reader is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Clinical&Analytical Instrument > ELISA |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
BIOBASE ELISA Microplate Reader
Product overview
Elisa reader is a kind of analytical instrument widely used in biology, clinical and other fields.
Key features
- Elisa Microplate Reader BK-EL10C
- Brochures
Applications
- Clinical laboratories and diagnostic workflows
- Clinical, analytical, screening, or diagnostic laboratory workflows using the selected configuration
Technical specifications
- Elisa Microplate Reader BK-EL10C
- Brochures
Features:
1. 10.1-inch large touch screen operation(Except BK-EL10B).
2. High precision and accurate results.
3. Software: Single wavelength and double wavelengths detection methods.

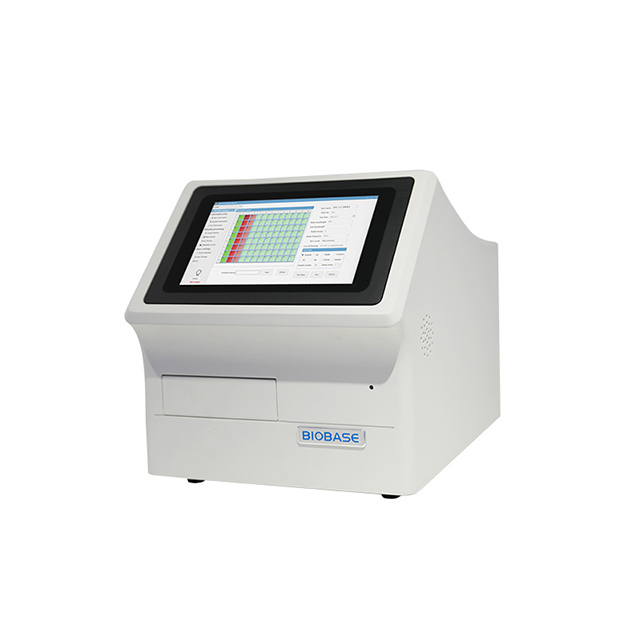

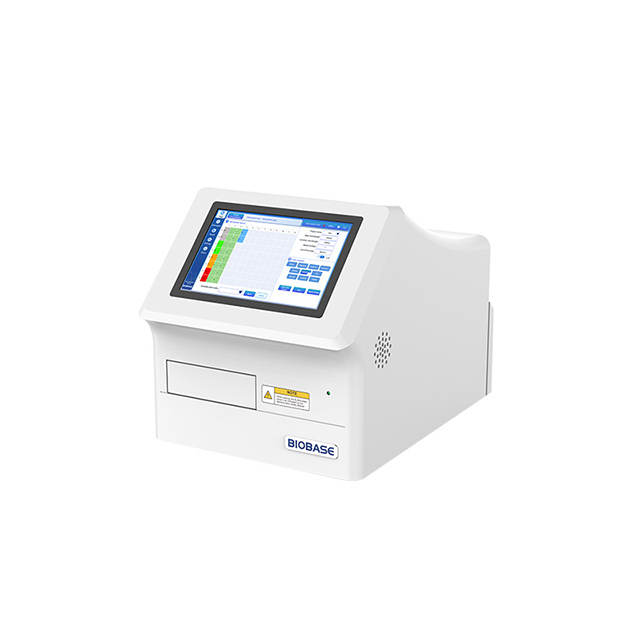

4. BK-EL10D is the Windows operating interface, and BK-EL10DA is the Android operating interface.
Technical Parameters:
|
Model |
BK-EL10A |
BK-EL10B |
BK-EL10C |
BK-EL10D |
BK-EL10DA |
|
Measurement Channel |
Vertical 8 optical channels |
||||
|
Plate Type |
96-well microplate |
||||
|
Wavelength Range |
400~750nm |
340~850nm |
|||
|
Filter |
Standard 4 wavelengths of 405, 450, 492, 630nm (BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm (BK-EL10D, BK-EL10DA) Optional: Up to 10 wavelengths |
||||
|
Linear Range |
0.000~3.000Abs |
0.000~3.500Abs |
|||
|
Reading Range |
0.000~4.000Abs |
||||
|
Resolution |
0.0001Abs |
||||
|
Repeatability |
CV≤0.2% |
||||
|
Stability |
≤±0.003Abs/10min |
||||
|
Sensitivity |
≥0.01L/mg |
||||
|
Channel Difference |
≤0.02Abs |
||||
|
Vibration Plate Function |
3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10D, BK-EL10DA) |
||||
|
Incubation Function |
Time Range: 0~60min Temp. Range: RT+4°C~50°C (Only for BK-EL10D, BK-EL10DA) |
||||
|
Software (Standard) |
Detection Mode |
Single/double wavelength |
|||
|
Qualitative |
Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions |
||||
|
Quantitative |
Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms |
||||
|
Others |
Display |
10.1-inch color touch capacitive screen (BK-EL10A, BK-EL10D, BK-EL10DA) 10.1-inch resistive touchscreen (BK-EL10C) |
|||
|
Operating Mode |
Touch screen operation, equipped with capacitive stylus, EL10DAsupport for external keyboard and mouse (BK-EL10A, BK-EL10D, BK-EL10DA) |
||||
|
Printer(Optional) |
BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer( A4 printer can be optional) BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional) |
||||
|
Interface |
USB 2.0*4, RJ45 network port*1, RS-232*1 (BK-EL10A, BK-EL10D, BK-EL10DA) RS232 serial port (BK-EL10B) RS232*2 (standard RS232 to USB cable) (BK-EL10C) |
||||
|
Power Supply |
AC100~240V, 50/60Hz |
||||
|
Instrument Size(W*D*H) |
450*320*300mm |
450*320*190mm |
450*320*300mm |
495*340*370mm |
|
|
Package Size(W*D*H) |
540*400*460mm |
585*425*405mm |
610*440*475mm |
||
|
Net/Gross Weight |
13/15kg |
10/12kg |
11/13kg |
12/14kg |
Download: 47-48 Elisa Microplate Reader.jpg
Product video
An official product video is attached through the WooCommerce product-video metadata.
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
