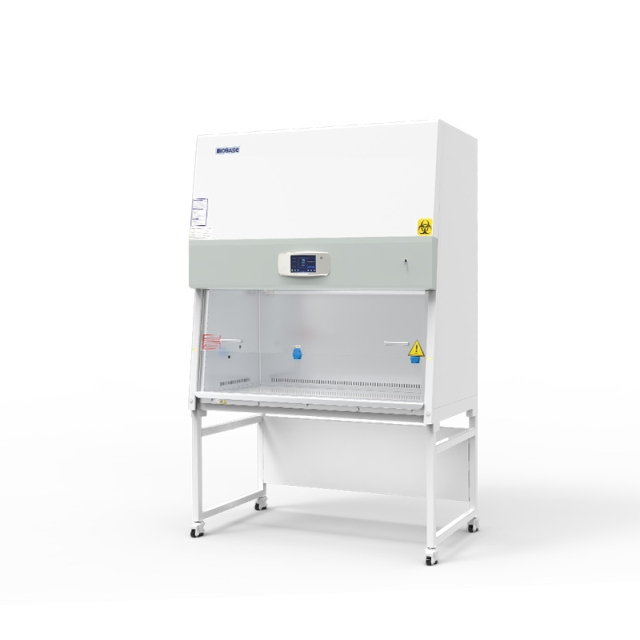

BIOBASE EC Series Class II A2 Biological Safety Cabinet EA2 Series

Product overview

The EC Series Class II A2 Biological Safety Cabinet is a state-of-the-art containment unit designed to provide maximum protection for personnel, products, and the environment while working with hazardous biological materials.

Key features

Product Description

Applications

Water quality and environmental testing
Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials
Air-protection, containment, clean-air, or controlled laboratory work

Technical specifications

Product Description
Brochure

Features:

1. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.

2. The power-on password can be set to prevent mis-operation by irrelevant personnel.

3. Automatically adjust the wind speed.

4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.

5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.

6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.

7. The rear of the operating area is equipped with anti-paper dust structure to prevent paper scraps from entering the air duct cavity.

Model	EA2-3F	EA2-4F	EA2-5F	EA2-6F	EA2-7F
External Size(WDH)	11008002200mm	13008002200mm	15008002200mm	18008002200mm	19508002250mm
Internal Size(WDH)	940600660mm	1150600660mm	1350600660mm	1625600660mm	1800600660mm
Tested Opening	Safety height 200mm(8″)
Max Opening	460mm
Inflow Velocity	0.53±0.025m/s
Downflow Velocity	0.33±0.025m/s
ULPA Filter	Two, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window	Manual and electric. Tempered glass≥5mm. Anti UV
Noise	≤65dB
UV Lamp	30W*1	30W*1	40W*1	40W*1	40W*1
UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination
LED Lamp	12W*2	14W*2	16W*2	16W*2	12W*4
Illumination	≥1000Lux
Consumption	600W	800W	1300W	1300W	1700W
Waterproof Socket	Two, total load of two sockets: 500W
Display	LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System	Microprocessor
Airflow System	70% air recirculation, 30% air exhaust
Visual and Audio Alarm	Filter replacement, window over height, abnormal air flow velocity, high filter pressure, abnormal power failure
Material	Work Zone: 304 stainless steel
Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	770mm(can be customized)	800mm(can be customized)
Caster	Footmaster caster
Power Supply	AC220V, 50/60Hz; 110V, 60Hz
Standard Accessory	LED lamp 2pcs, UV lamp 2pcs, Base stand, Foot switch, Drain valve, Waterproof sockets 2pcs, EC Fan, Remote control
Optional Accessory	Water and gas tap, Electric height adjustable base stand, Armrest
Gross Weight	284kg	316kg	355kg	420kg	455kg
Package Size(WDH)	123010601840mm	143010601840mm	163010601840mm	193010601840mm	208010601840mm

Download: 23-24 EC Series Class II A2 Biological Safety Cabinet EA2-3F & EA2-4F & EA2-5F & EA2-6F & EA2-7F.jpg

Ordering and configuration

Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
