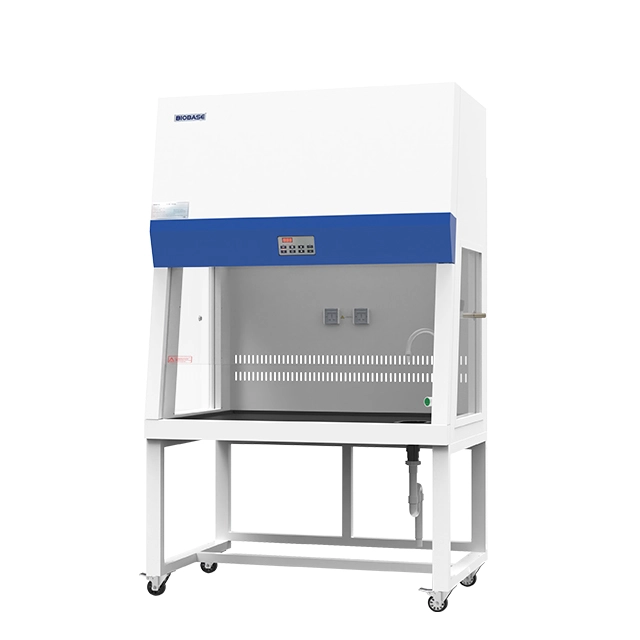

BIOBASE Ducted Fume Hood FH(X) | Estimated Price: US$1,000–1,280 | Request a Quote
Available in stock
Fume Hood is a kind of negative pressure ventilation system for protecting operator and laboratory environment.
Estimated equipment price only. Shipping, import duties, installation, and logistics are additional and vary by destination and shipping method. We will contact you to confirm the total cost before processing your order.
Scientific China
StorePeople Also Viewed
-
SonoStar 3CL 2in1 palm doppler ultrasound scanner — Estimated US$1,610
-
SonoStar 4CR biplane rectal palm doppler ultrasound scanner — Estimated US$2,400
-
SonoStar 4T transvaginal palm doppler ultrasound scanner — Estimated US$1,800
-
SonoStar 4T transvaginal palm doppler ultrasound scanner — Estimated US$1,800
-
SonoStar 4PA phased array palm doppler ultrasound scanner — Estimated US$1,800
-
SonoStar 4M micro-convex palm doppler ultrasound scanner — Estimated US$1,800
| Product Category | Air Protection Products > Fume Hood |
|---|
Product Enquiry
Description
Fume Hood is a kind of negative pressure ventilation system for protecting operator and laboratory environment. Room air flows inward from the front opening of the Fume Hood and is consistently ventilated by the extract blower. Therefore, contaminated fumes, vapors, toxic gasses, aerosol and corrosive substance which are probably generated during experiments could be prevented from spreading to the operator or into the laboratory room. In addition, the polluted air could be purified by the active carbon filter before exhausting through the duct. Thus, the outdoor environment could also be protected.
- FH(X) series Fume Hood
- Research, medical, and industrial laboratories
- Water quality and environmental testing
- Sterilization and infection-control workflows
- Sample separation and centrifugation workflows in research, clinical, and industrial laboratories
- Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials
Technical specifications
Features:
1. UV lamp for sterilization.
2. Motorized front glass window.
3. Resistant to weak acid and alkali.
4. Adjustable air speed: 9 levels.
5. Alarm when filter working time 3500 hours.
6. With memory function in case of power-failure.
7. Back side air compensation, to avoid turbulence in work area.
8. 8°slope front ergonomics design, fatigue-free working posture.
9. Microprocessor control system, LED display shows filter working time.
10. Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
Technical Parameters:
|
Model |
FH1000(X) |
FH1200(X) |
FH1500(X) |
FH1800(X) |
|
External Size(W*D*H) |
1000*840*2150mm |
1200*840*2150mm |
1500*840*2150mm |
1800*840*2150mm |
|
Internal Size(W*D*H) |
880*730*745mm |
1080*730*745mm |
1380*730*745mm |
1680*730*745mm |
|
Max Opening |
520mm |
|||
|
Work Surface Height |
750mm |
|||
|
Blower |
Built-in centrifugal blowers, Speed adjustable with 9 levels |
|||
|
Air Velocity |
0.3~0.8m/s |
|||
|
System Exhaust Volume |
630m³/h |
780m³/h |
990m³/h |
1210m³/h |
|
Noise |
≤68dB |
|||
|
LED Lamp |
8W*1 for 110V 20W*1 for 220V |
12W*1 for 110V 20W*1 for 220V |
16W*1 for 110V 40W*1 for 220V |
16W*1 for 110V 40W*1 for 220V |
|
UV Lamp |
20W |
30W | ||
| Emission of 253.7 nanometers for most efficient decontamination | ||||
|
Front Window |
Motorized; 5 mm toughened glass, anti-UV |
|||
| Material |
Exterior body: Cold-rolled steel with anti-bacteria powder coating. Work table: Chemical resistant phenolic resin |
|||
|
Waterproof Socket |
1pc |
2pcs |
2pcs |
2pcs |
|
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
|||
|
Consumption |
400W |
400W |
500W |
500W |
|
Standard Accessory |
Water tap, Gas tap, Water sink, Base stand, UV lamp*2, LED lamp, Socket, 5 meters exhaust duct, Active carbon filter, Foot switch |
|||
|
Optional Accessory |
HEPA filter |
|||
|
Gross Weight |
230kg |
253kg |
290kg |
340kg |
|
Package Size(W*D*H) |
1150*1120*1680mm |
1350*1120*1680mm |
1650*1120*1680mm |
1950*1120*1680mm |
