BIOBASE Ducted Fume Hood FH(P)

Name: BIOBASE Ducted Fume Hood FH(P) - Scientific China
SKU: BIOBASE-C30B8F1E9A

Available in stock

Features

BIOBASE Ducted Fume Hood FH(P) is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.

Compare

SKU: BIOBASE-C30B8F1E9A Category: Fume Hood Tags: Air Protection Products, BIOBASE, Fume Hood, laboratory equipment, Medical Equipment Brand: BIOBASE

Scientific China

Store

Scientific China

Store

People Also Viewed

Shipping

Additional information

Product Category	Air Protection Products > Fume Hood

Questions & Answers

Product Enquiry

Description

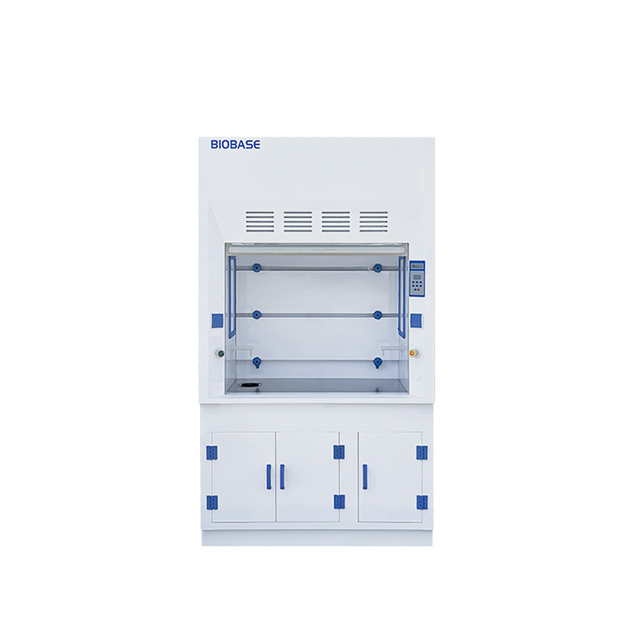

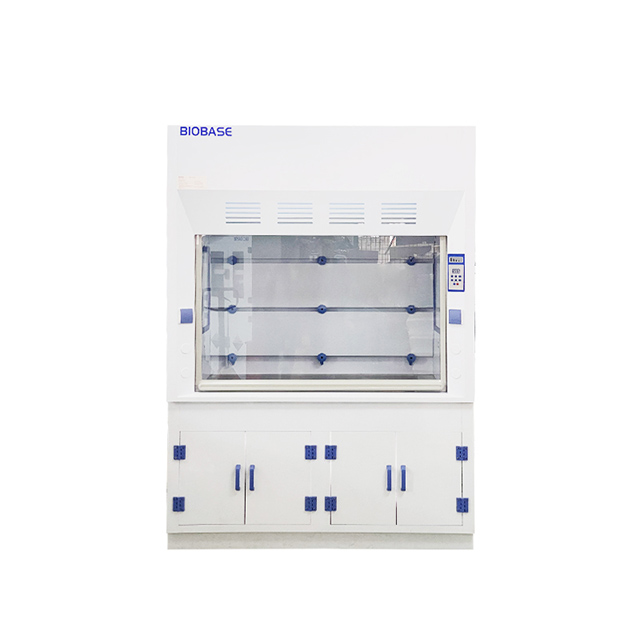

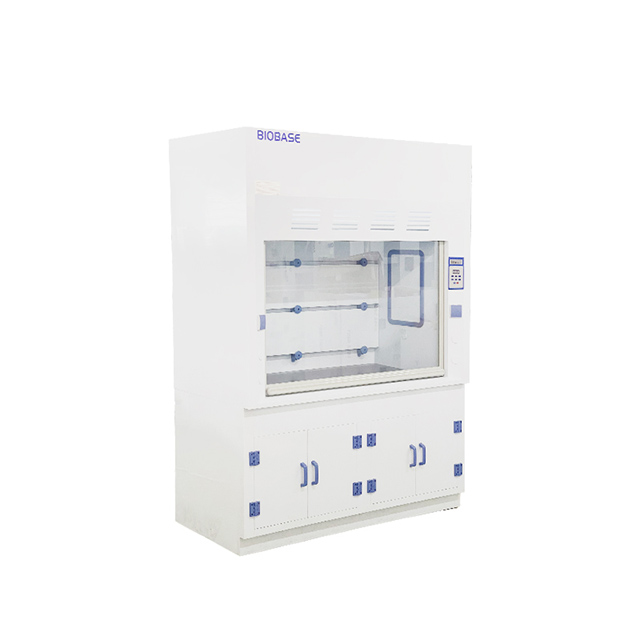

BIOBASE Ducted Fume Hood FH(P)

Product overview

It is a new type of technical equipment for air-conditioned workshop and clean workshop. Widely used in electronics, chemical, machinery, universities, laboratories and other fields. The fume hood can be used for the operation of potentially dangerous or unknown infection factors, as well as the experiment of strong acid, strong alkali, strong corrosive and volatile. Protect operator and sample safety.

Key features

Ducted PP Fume Hood
Brochures

Applications

Water quality and environmental testing
Sample separation and centrifugation workflows in research, clinical, and industrial laboratories
Air-protection, containment, clean-air, or controlled laboratory work

Technical specifications

Ducted PP Fume Hood
Brochures

Features:

1. It is safer to use anti-corrosive water tap.

2. Microprocessor control system, LED display.

3. With memory function in case of power-failure.

4. Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.

5. Front window which is made of 5mm thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.

Model	FH1000(P)	FH1200(P)	FH1500(P)	FH1800(P)
External Size(WDH)	10478002450mm	12478002450mm	15478002450mm	18478002450mm
Internal Size(WDH)	787560700mm	987560700mm	1287560700mm	1587560700mm
Work Surface Height	820mm
Max Opening	740mm
Air Velocity	0.3~0.8m/s
Noise	≤68dB
Exhaust Duct	5 meters, Φ250mm
LED Lamp	9W*2	12W*2	15W*2	20W*2
Blower	Built-in PP centrifugal blower(2 blowers for FH1800(P) only), Speed adjustable
Front Window	Resistant to acid and alkali, manual, 5mm toughened glass, height adjustable
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption	400W	400W	500W	700W
Material	Main Body	Made of porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion.
Work Table	Chemical resistant phenolic resin
Standard Accessory	LED light Work table: chemical resistant phenolic resin 5 meters PVC duct(2pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm Pipe strap2(4pcs for FH1800(P) only) RVV power cord(31.0mm²3000mm) Base cabinet Waterproof socket2 Tail insert Water tap(PP) Gas tap(PP) Water sink PP centrifugal blower*1(2 for FH1800(P) only)
Optional Accessory	PP work table, epoxy resin board or ceramic board Active carbon filter Outer PP centrifugal blower *1 (2 for FH1800(P) only); Splicable base cabinet(only not for FH1800(P))
Gross Weight	Main Body	137kg	155kg	180kg	206kg
Base Cabinet	89kg or 80kg(Splicable)	99kg or 90kg(Splicable)	114kg or 102kg(Splicable)	140kg
Package Size(WDH)	Main Body	11889381612mm	13889381612mm	16889381612mm	19889381612mm
Base Cabinet	11888881000mm or 12001000450mm(Splicable)	13888881000mm or 14001000450mm(Splicable)	16888881000mm or 17001000450mm(Splicable)	19888881000mm

Download: 109-110 Fume Hood–FH-1000(P).jpg

Product video

An official product video is attached through the WooCommerce product-video metadata.

Ordering and configuration

Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
