BIOBASE Double Sides Type Vertical Laminar Flow Cabinet BBS-DSC BBS-SSC
Available in stock
BIOBASE Double Sides Type Vertical Laminar Flow Cabinet BBS-DSC BBS-SSC is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Air Protection Products > Laminar Flow Cabinet |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description

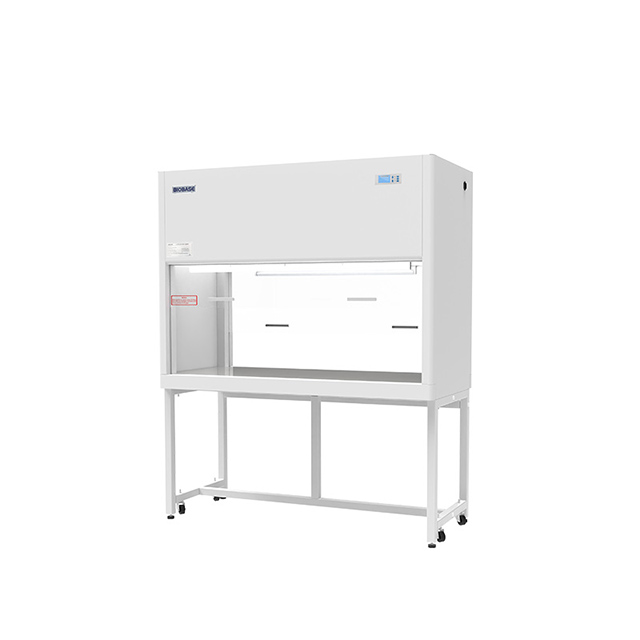

BIOBASE Double Sides Type Vertical Laminar Flow Cabinet BBS-DSC BBS-SSC
Product overview
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. This model is vertical laminar flow cabinet.
Key features
- Product Description
- Brochures
Applications
- Professional laboratory, medical, research, or industrial workflows requiring this equipment class
- Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials
- Air-protection, containment, clean-air, or controlled laboratory work
Technical specifications
- Product Description
- Brochures
Features:
1. With memory function in case of power-failure.
2. Double sides work bench, 2~4 operators can work together.
|
Model |
BBS-DSC |
BBS-SSC |
|
External Size(W*D*H) |
1040*660*1770mm |
1440*660*1770mm |
|
Internal Size(W*D*H) |
940*560*545mm |
1340*560*545mm |
|
Work Surface Height |
750mm |
|
|
Display |
LED display |
|
|
Airflow Velocity |
Average of 0.3~0.5m/s |
|
|
Material |
Main Body: Cold-rolled steel with anti-bacteria powder coating |
|
|
Work Table: 304 stainless steel |
||
|
Pre-filter |
Polyester fiber, washable |
|
|
HEPA Filter |
99.995% efficiency at 0.3μm |
|
|
Noise |
<65dB |
|
|
Front Window |
Manual, 5mm toughened glass, anti-UV |
|
|
Max Opening |
310mm |
|
|
UV Lamp |
20W*1 |
30W*1 |
|
Emission of 253.7 nanometers |
||
|
LED Lamp |
12W*1 |
16W*1 |
|
Consumption |
350W |
600W |
|
Caster |
Universal caster with leveling feet |
|
|
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
|
|
Standard Accessory |
LED lamp, UV lamp*2, Base stand |
|
|
Optional Accessory |
Electric height adjustable base stand |
|
|
Gross Weight |
150kg |
186kg |
|
Package Size(W*D*H) |
1190*890*1340mm |
1590*890*1340mm |
Download: 80-81 Vertical Laminar Flow Cabinet–BBS-DSC.jpg
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
