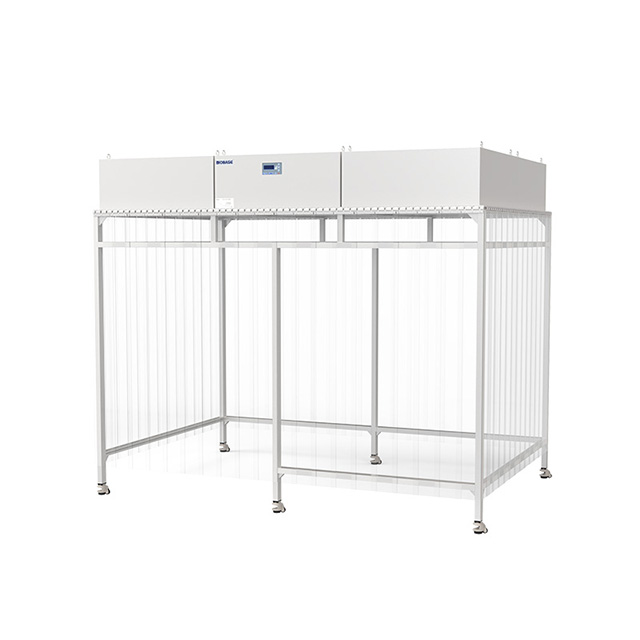

BIOBASE Clean Booth(Down Flow Booth) | Estimated Price: US$6,600–12,600 | Request a Quote
Available in stock
Clean booth is a kind of air purifying equipment providing partial high clean environment, it's the easiest and fastest way to build a simple clean room.
Estimated equipment price only. Shipping, import duties, installation, and logistics are additional and vary by destination and shipping method. We will contact you to confirm the total cost before processing your order.
Scientific China
StorePeople Also Viewed
-
Hanon T931 Coulometric KF Titrator — Estimated US$14,180
-
Novel Optics Metal Structural Components — Estimated US$100 / unit
$100.00
-
Novel Optics Laser Collimation Module — Estimated US$250 / unit
$250.00
-
Novel Optics Barcode Scanning Engine — Estimated US$120 / unit
$120.00
-
Novel Optics Imaging Module — Estimated US$450 / unit
$450.00
-
Novel Optics 3D Line Laser Module — Estimated US$500 / unit
$500.00
| Product Category | Air Protection Products > Others |
|---|
Product Enquiry
Description
Clean booth is a kind of air purifying equipment providing partial high clean environment, it's the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.
- Clean Booth(Down Flow Booth)
- Professional laboratory, medical, research, or industrial workflows requiring this equipment class
- Sample separation and centrifugation workflows in research, clinical, and industrial laboratories
- Air-protection, containment, clean-air, or controlled laboratory work
Technical specifications
Features:
1. Customized design is welcomed.
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement(Universal wheel can be installed).
|
Model |
BKCB-1500 |
BKCB-2000 |
BKCB-3000 |
BKCB-5000 |
|
External Size(W*D*H) |
2000*1500*2530mm |
3000*2000*2530mm |
4000*3000*2530mm |
5000*5000*2530mm |
|
Internal Size(W*D*H) |
1920*1380*2140mm |
2920*1880*2115mm |
3880*2880*2095mm |
4880*4880*2095mm |
|
HEPA Filters |
99.995% efficiency at 0.3μm |
|||
|
Consumption |
800W |
1500W |
2800W |
5500W |
|
FFU Nos. |
4pcs |
6pcs |
12pcs |
25pcs |
|
Clean Level |
ISO 5(Class 100), Class A |
|||
|
Control System |
Microprocessor control system |
|||
|
Rectangular Tube Material |
Aluminium alloy |
|||
|
Wall Material |
Anti-static dustproof curtain |
|||
|
Blower |
Built-in centrifugal blower, Speed adjustable |
|||
|
UV Lamp |
40W*2 |
40W*2 |
40W*3 |
40W*5 |
|
Emission of 253.7nanometers with UV timer |
||||
|
Illuminating Lamp |
16W*1 |
16W*2 |
16W*3 |
16W*5 |
|
LED lamp, Illumination: ≥300lux |
||||
|
Air Velocity |
0.1~0.6m/s, average 0.45m/s |
|||
|
Noise |
≤75db |
|||
|
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
|||
|
Gross Weight |
390kg |
670kg |
1100kg |
2900kg |
|
Net Weight |
355kg |
625kg |
1020kg |
2800kg |
|
Package Size(W*D*H) |
2110*930*920mm 2280*660*500mm |
3080*980*1280mm 3080*660*550mm |
3200*880*980mm*1 3200*1820*1350mm*1 |
4080*980*1280mm*3 1260*660*1280mm 5080*460*500mm |
|
Customized design for clean level, size or material is available. |
