BIOBASE Blood Coagulation Analyzer

Product overview

The blood coagulation analyzer adopts the principle of optical colorimetry for detection. After the reagent is mixed with the plasma, fibrinogen is converted into fibrin and coagulated, which leads to the change of the optical density of the test specimen, and the instrument detects the coagulation end point.

Key features

Product Description

Applications

Research, medical, and industrial laboratories
Hospitals and healthcare facilities
Blood banks and transfusion services
Clinical, analytical, screening, or diagnostic laboratory workflows using the selected configuration

Technical specifications

Product Description
Brochure

Application:

It is suitable for the detection of prothrombin time(PT), activated partial thromboplastin time(APTT), thrombin time(TT) and fibrinogen(FIB) in plasma.

Widely used in blood laboratory, biochemical laboratory, hospital blood laboratory and so on.

Features:

1. Dual-channel independent detection, can analyze different items at the same time.

2. 5-inch high-definition touch screen, easy to operate.

3. Open system, good compatibility, Supports reagents of various specifications.

4. 20,000 results storage.

5. Equipped with multiple pre-temperature positions to improve detection efficiency.

6. Built-in thermal printer.

7. The pipette automatically triggers the measurement, and the measurement time can be accurate to tenths of a second.

8. Less reagent consumption.

Technical Parameters:

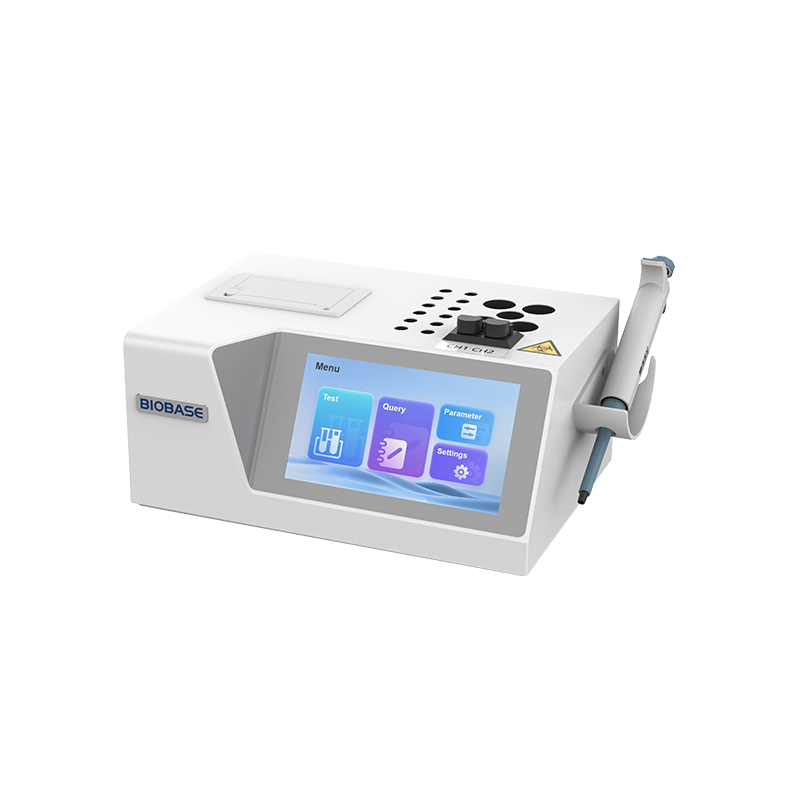

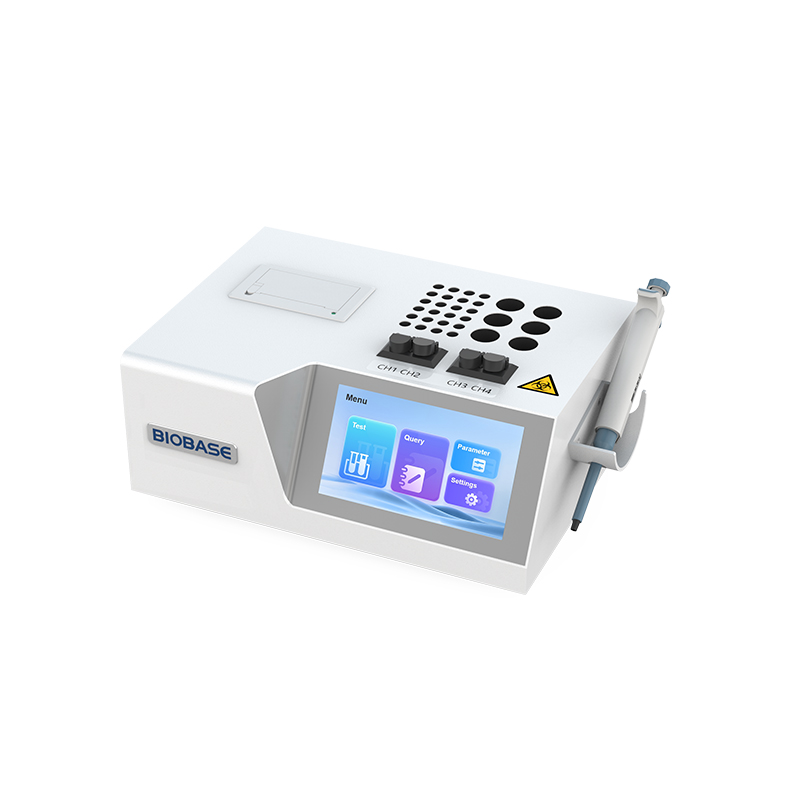

Model	BK-CA02	BK-CA04
Test Principle	Optical colorimetry
Test Items	PT, APTT, TT, FIB
Test Channel	2(can test different projects at the same time)	4(can test different projects at the same time)
Wavelength	470nm
Detection Time	Normal sample detection time is 20 to 40 seconds, and can be set arbitrarily from 20 to 99 seconds
Sample Incubation Position	12	24
Reagent Incubation Position	5	6
Detection Position Temperature	37.0±1.0°C
Incubation Position Temperature	37.0±1.0°C
Incubation Time	1~999s
Reaction Time	1~99s
Reagent Dosage	Minimum dosage 20μl
Sample Volume	20μl~40μl
Display	7-inch high-definition color touch screen
Storage	200,000 results storage, automatically save measurement data when power off
Communication Interface	RS232 serial interface, support LIS system
Printer	Built-in thermal printer
Power Supply	AC100~240V, 50/60Hz
Consumption	70VA
Ambient Temperature	10℃~30℃
Relative Humidity	≤80%
Atmospheric Pressure	86kPa~106kPa
External Size(WDH)	360210120mm	390250135mm
Net Weight	3.5kg	4.96kg
Package Size(WDH)	376246316mm	445305265mm
Gross Weight	5kg	7kg

Download: 71-72 Blood Coagulation Analyzer BK-CA02&CA04.jpg

Product video

An official product video is attached through the WooCommerce product-video metadata.

Ordering and configuration

Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
