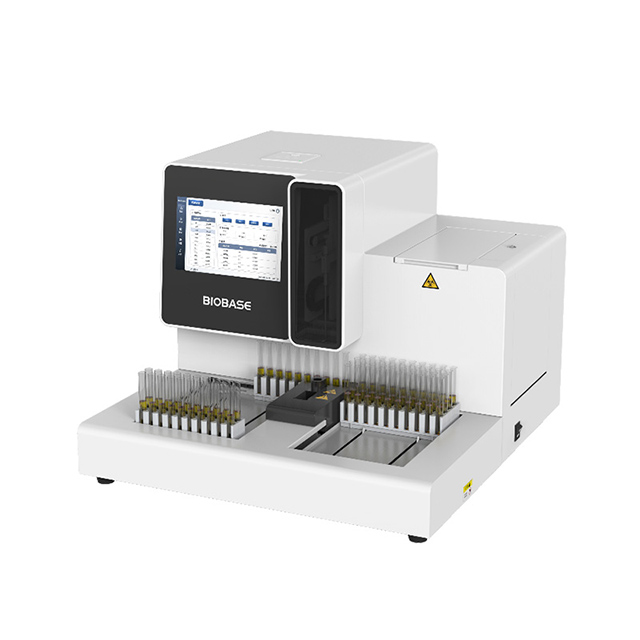

BIOBASE Automatic Urine Analyzer
Product overview
Urine analyzer is an automatic instrument for the determination of certain chemical components in urine. It is an important tool for automated urine inspection in medical laboratory. It has the advantages of simple operation and fast operation. Under the control of the computer, the instrument collects and analyzes the color information of various reagent blocks on the test belt, and converts a series of signals to output the chemical composition content in the urine.
Key features
- Product Description
Applications
- Research, medical, and industrial laboratories
- Clinical, analytical, screening, or diagnostic laboratory workflows using the selected configuration
Technical specifications
- Product Description
- Brochure
Features:
1. Built-in 10.1-inch touch screen, built-in thermal printer.
2. Sample delivery, injection, droplet, analysis and report output are completed automatically by the instrument.
3. High-precision sample dispenser is used to ensure thorough reaction and improve the accuracy of test results.
4. Automatic strip selection chamber, accommodating 600 test strips at the same time.
5. Supports closed puncture analysis, greatly improving biosafety.
|
Model |
BH-QNY01 |
BH-QNY02 |
|
Cascade Function |
No | Yes |
|
Principle |
Photoelectric colorimetry |
|
|
Throughput |
240 tests/hour | |
|
Screen |
10.1-inch touch screen |
|
|
Memory |
Can store more than 1,000,000 test reports |
|
|
Printer |
Built-in thermal printer |
|
|
Interface |
USB, RS232, network interface |
|
|
Barcode Scanner |
Can be optional |
|
|
Range of Application |
9, 10, 11, 14 test strip |
|
|
Items |
9 test strip: GLU, BIL, KET, pH, BLD, PRO, URO, NIT, LEU 10 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU 11 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC 14 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC, CRE, CAL, MCA |
|
|
Sample Rack Capacity |
100pcs samples(10pcs test tube racks) |
|
|
Reagent Tank Capacity |
600pcs |
|
|
Data Retrieval |
Can be searched by actual date, range date, urine sample number, name, barcode, etc. |
|
|
Automatic Sensing |
Automatically detects and analyzes after placing the sample |
|
|
Calibration Function |
Yes |
|
|
Power |
130W |
|
|
Power Supply |
AC100~240V, 50/60Hz |
|
|
External Size(W*D*H) |
662*730*520mm |
662*780*520mm |
|
Net Weight |
53kg |
56.5kg |
|
Packing Size(W*D*H) |
805*600*1160mm |
|
|
Gross Weight |
88kg |
91.5kg |
Remark: The machine comes standard with 100 test strips.
