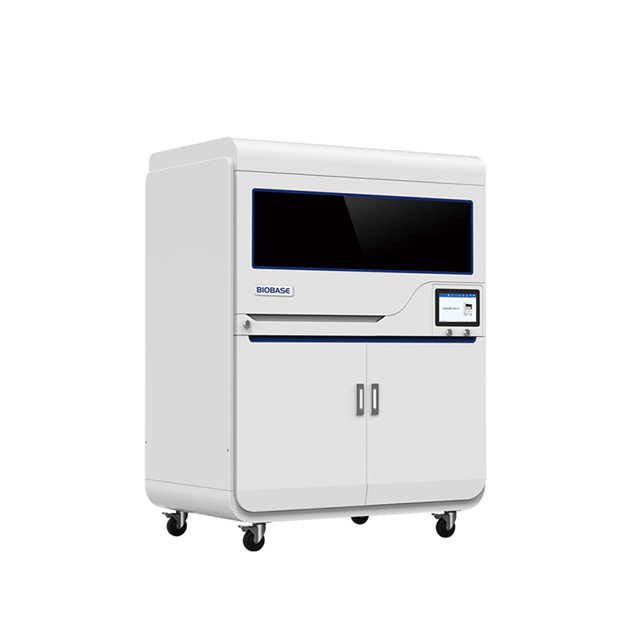

BIOBASE Automatic Nucleic Acid Extractor BK-AutoHS96

Model

BK-AutoHS96

Extraction Method

Magnetic bead method

Working Mode

Automatic sampling+Nucleic acid extraction+PCR reaction system addition

Throughput

1~96, Linear slide type sample rack

Extraction Volume

20~1000μl

Processing Time

Complete the processing of 96 samples within 60 minutes(related to reagents)

Magnetic Bead Recovery

≥98%

Temp Range

RT~105℃, Lysis and elution position

Temp Accuracy

0.1℃

Heating Method

Dry bath heating

Heating Speed

RT~100℃≤6min

Shaking Function

Up and down oscillation(1~5 gears adjustable)

Extraction Position

6(96-well deep well plate)

Robotic Arm

A robotic arm for adding samples and reagents

Pipetting Channel

2 channels

Liquid Detection

Pneumatic liquid level detection principle, intelligent detection of blocked needle

Pipetting Tip

50μl, 200μl,1000μl, disposable black conductive needle with filter element

Tip Amount

2~3 tips/sample

Pipetting Accuracy

10μl, CV≤3.0%, Accuracy≤5.0%, 50μl tip

50μl, CV≤2.0%, Accuracy≤2.0%, 1000μl tip

100μl, CV≤1.5%, Accuracy≤2.0%, 1000μl tip

Sample Volume

2~1000μl

Working Zone

2 pcr positions with cooling function

6 tip positions for three types of tips

2 reagent positions(5ml freezing tube rack position with cooling function, one reserved position)

Protective Function

Start up self-test, Power-off protection, High temperature alarm, Over-temperature protection, Tip removal protection

Disinfection Method

UV lamp(30W*1, 8W*1)

Illumination Lamp

10W LED lamp

Audible Alarm

Yes(Red and blue blinking)

Safety Door Design

With safety lock function, the safety door is opened and the program is suspended

Display

10.1 inch touch screen, Windows system

Scanning

Optional

Interface

LAN interface(Bi-direction LIS optional)

Contamination Control

Built-in air duct and HEPA filter can effectively filter internal aerosols and prevent cross-contamination

IAP Function

Firmware can be upgraded online at any time

Power Supply

AC110/220V, 50/60Hz

External Size(W*D*H)

1420*850*1842mm

Package Size(W*D*H)

1535*970*1180mm(Main instrument);

1540*970*1160mm(Base)

Gross Weight

360kg(Main instrument);

190kg(Base)
