BIOBASE Automatic Drinking Bottle Washer | Estimated Price: US$5,600–9,150 | Request a Quote
Available in stock

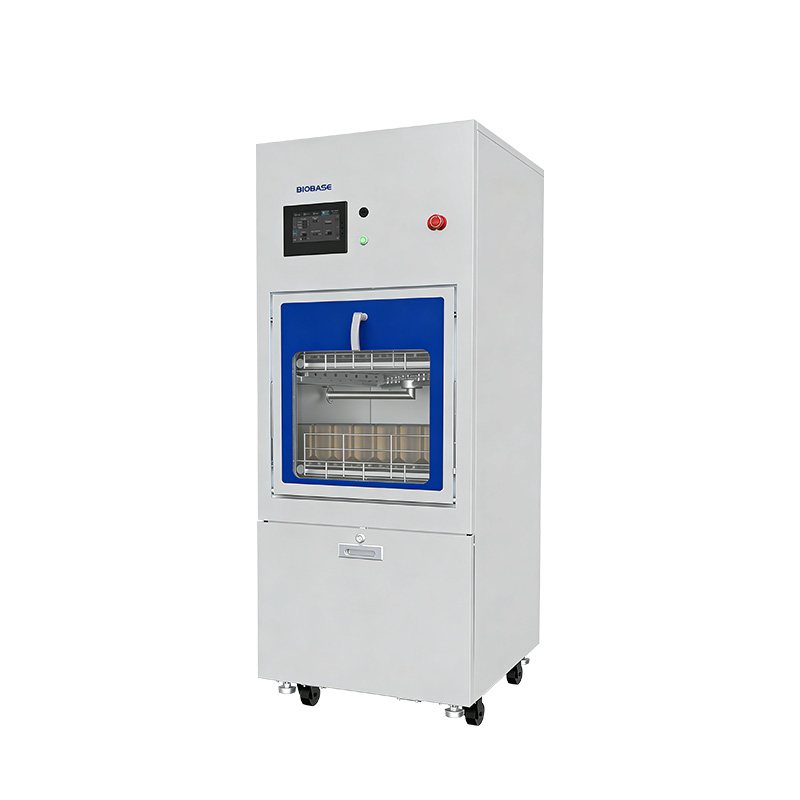

Automatic drinking bottle washer is born for the laboratory animal industry,suitable for the automatic cleaning and disinfection of drinking water bottles for laboratory animals.
Estimated equipment price only. Shipping, import duties, installation, and logistics are additional and vary by destination and shipping method. We will contact you to confirm the total cost before processing your order.
SKU: BIOBASE-988B7935F2
Category: Washer Disinfector
Tags: BIOBASE, Disinfection & Sterilization, laboratory equipment, Medical Equipment, Washer Disinfector
Brand: BIOBASE
Report Abuse
Scientific China
Store
Scientific China
StorePeople Also Viewed
-
Novel Optics Metal Structural Components — Estimated US$100 / unit
$100.00
-
Novel Optics Laser Collimation Module — Estimated US$250 / unit
$250.00
-
Novel Optics Barcode Scanning Engine — Estimated US$120 / unit
$120.00
-
Novel Optics Imaging Module — Estimated US$450 / unit
$450.00
-
Novel Optics 3D Line Laser Module — Estimated US$500 / unit
$500.00
-
Novel Optics Panoramic Lens — Estimated US$400 / unit
$400.00
Shipping
Additional information
| Product Category | Disinfection & Sterilization > Washer Disinfector |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
Automatic drinking bottle washer is born for the laboratory animal industry,suitable for the automatic cleaning and disinfection of drinking water bottles for laboratory animals.
Technical specifications
Features:
1. Equipped with preheating water tank to reduce the cleaning water heating waiting time.
2. 4~6 minutes quick cleaning, can clean 72 drinking bottles at a time.
3. Original imported European circulation pump, large circulation design, spray strength, stable quality, effectively improve the cleaning effect.
4. The final rinse water is used for the next cleaning, saving water.
5. 7 inch color LCD touch screen, easy to operate.
6. Independently design and develop control systems to meet various operation and management needs.
|
Model |
BK-CW330 |
BK-CW330Z |
|
Capacity |
330L |
|
|
Cleaning Volume |
200ml drinking bottle can be cleaned 180, 500ml drinking bottle can be cleaned 72 |
|
|
Opening Mode |
Manual |
|
|
Control System |
PLC/Siemens |
|
|
Touch Screen |
7 inch |
|
|
Cleaning Time |
Quick cleaning program can be cleaned once in 4~6 minutes |
|
|
Cleaning Temperature |
＞60℃(Adjustable) |
|
|
Rinsing Temperature |
＞82℃(Adjustable) |
|
|
Drying Temperature |
RT~120℃(Optional) |
|
|
Heating Method |
Electric heating |
Steam heating |
|
Steam source |
/ |
Pressure: 0.3~0.5Mpa, Flow Rate: 50kg/h |
|
Water Source |
Softened Water: Pressure: 0.2~0.5Mpa, Flow Rate: 15L/min |
|
|
Consumption |
31KW |
2KW |
|
Power Supply |
AC380/220V, 50Hz |
AC380/220V, 50Hz |
|
Power Supply(Optional) |
AC220V, 60Hz; 220V, 60Hz(Three phase); 380V, 60Hz; 110V, 50/60Hz |
|
|
External Size(W*D*H) |
690*790*1950mm |
|
|
Net Weight |
240kg |
|
|
Package Size(W*D*H) |
810*990*2185mm |
|
|
Gross Weight |
320kg |
