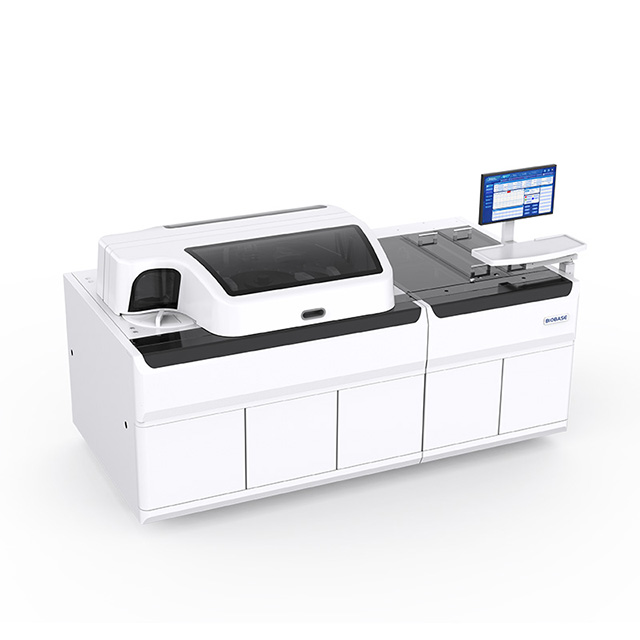

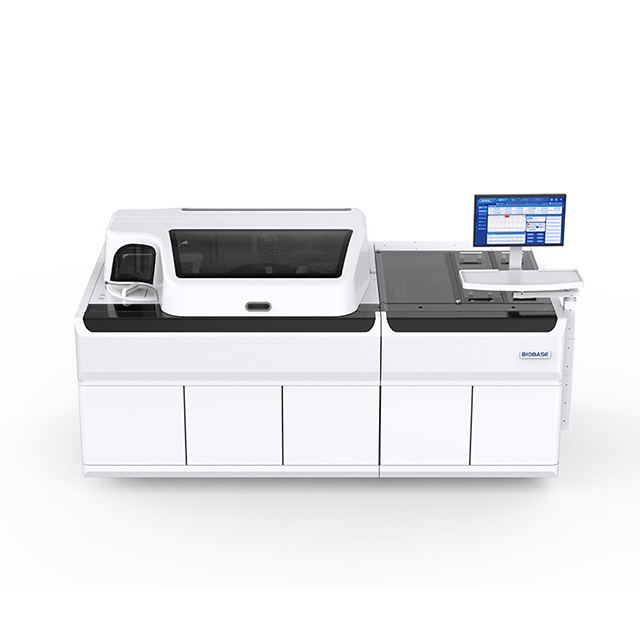

BIOBASE Automatic Chemistry Analyzer
Available in stock
BIOBASE Automatic Chemistry Analyzer is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Clinical&Analytical Instrument > Chemistry Analyzer |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
BIOBASE Automatic Chemistry Analyzer
Product overview
Automatic Chemistry Analyzer, a state-of-the-art solution for modern laboratories. With a capacity of 300 sample positions and 432 reaction cuvettes, this analyzer offers unparalleled efficiency and precision.
Key features
- Product Description
Applications
- Water quality and environmental testing
- Clinical, analytical, screening, or diagnostic laboratory workflows using the selected configuration
Technical specifications
- Product Description
- Brochure
Features:
1. 300 sample positions.
2. 432 reaction cuvettes.
3. 250 refrigerated reagent positions.
4. Double focus, double aperture, holographic concave grating.
5. 2000 tests per hour, ISE is optional.
6. Built-in sample barcode system.
7. Probe with anti-collision function, liquid level detection function.
Technical Parameters：
|
Model |
BK-2000 |
|
|
Overall |
Throughput |
2000 Tests/hour, ISE(Optional) |
|
Analysis Method |
End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
|
|
Certificates |
CE, FDA, ISO9001, ISO14001, ISO13485 |
|
|
Sample&Reagent System |
Sample Positions |
350 sample positions |
|
Reagent Positions |
250 reagent positions | |
|
Sample Volume |
1~35μl |
|
|
Reagent Volume |
10~350μl |
|
|
Probe |
Teflon coating, with anti-collision function, liquid level detection function |
|
|
Probe Washing |
Automatic washing interior and exterior |
|
|
Reagent Cooling |
Refrigerated tray with independent switch |
|
|
Reaction System |
Temperature Control |
Water bath 37±0.1℃, real-time monitoring |
|
Cuvettes |
432 reusable cuvettes, optical length 5.5mm |
|
|
Mixer Probe |
Independent stirring |
|
|
Washing |
Automatic cuvettes washing |
|
|
STAT function |
YES |
|
|
Optical System |
Light Source |
12V/100W halogen lamp/holographic concave grating |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
16 wavelength from 340~850nm |
|
|
Absorbance |
0~3.5Abs |
|
|
Calibration&QC |
Calibration |
Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
|
Quality Control |
Real-time QC, Westgard Multi Rule, Cumulative Sum Check, Twin Plot(2D) |
|
|
Data Management |
Software |
Windows 7/8/10, 32 or 64 bit |
|
LIS System |
Bi-direction, support HL7 protocol |
|
|
Interface |
LAN port access |
|
|
Printer |
External, multiple reporting mode available |
|
|
Working Conditions |
Power Supply |
AC220V±10%, 50/60Hz(Standard) 110V±10%, 60Hz(Optional), 3000VA |
|
Temperature |
15~30℃(±2 ℃) |
|
|
Water Consumption |
Deionized water: 80L/H |
|
|
Humidity |
40~85% |
|
|
Size&Weight |
External Size(W*D*H) |
Scheduling module: 972*1225*1495mm Analysis module: 1505*1225*1245mm |
|
Net Weight |
Scheduling module: 160kg Analysis module: 500kg |
|
|
Package Size(W*D*H) |
Scheduling module: 1410*1350*1170mm Analysis module: 1685*1410*1460mm |
|
|
Gross Weight |
Scheduling module: 235kg Analysis module: 600kg |
Download: 21-22 Automatic Chemistry Analyzer BK-2000.jpg
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
