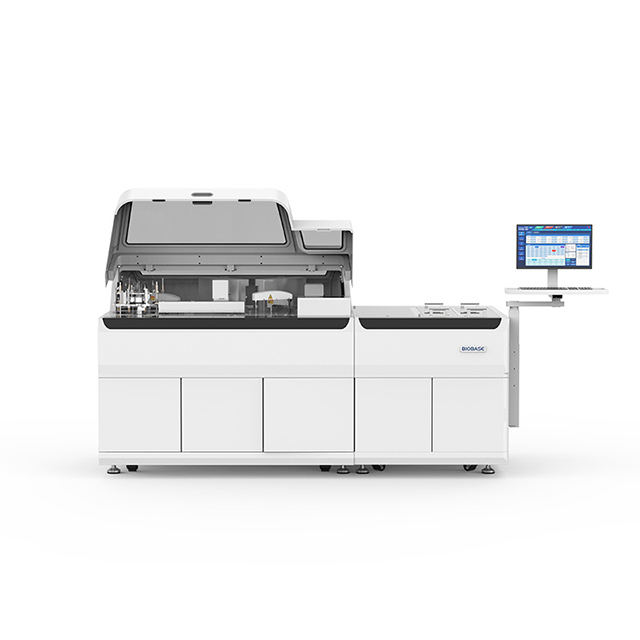

BIOBASE Automatic Chemiluminescence Immunoassay System BKI5800
Product overview
The chemiluminescence immunoassay system uses magnetic particle separation technology, which uses magnetic particles as antibody carriers. These particles can be evenly distributed in the liquid phase reaction system, enabling faster reaction speed and higher efficiency. Using the enzymatic chemiluminescence method, the light signal is more stable. It adopts a new generation of enzymatic substrates, with higher sensitivity and faster luminescence.
Key features
- Product Description
Applications
- Professional laboratory, medical, research, or industrial workflows requiring this equipment class
- Air-protection, containment, clean-air, or controlled laboratory work
Technical specifications
- Product Description
- Brochure
Features:
1. Innovative Design, Accelerated Detection

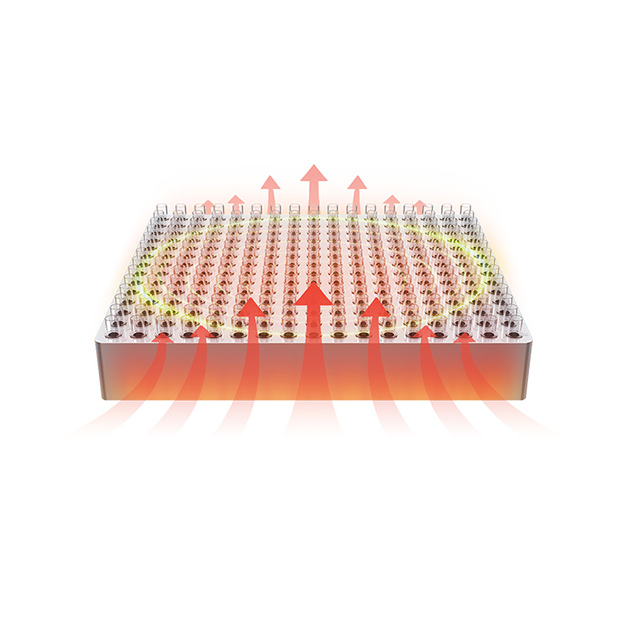

Detection speed of 600T/h, first results within 18 minutes. Solid-state direct heating incubation ensures more stable and precise temperature control. Dual-channel design for more efficient sample loading.
2. Intelligent and Convenient for a Better Experience
User-friendly design with a rocker arm display and one-button power on/off. Bulk loading of reaction cups, one-button loading of consumables, dual-bottle substrate backup, and convenient and quick operation. RFID function makes reagent loading even more convenient.
3. Highly Integrated and Stable Performance
Highly integrated design with a small footprint. CV value ≤3%, high precision. Intelligent needle cleaning technology combined with scheduling control technology ensures cleaner cleaning.
4. Compatible with Interconnectivity
Supports 1-4 units for online expansion to meet various testing needs. Equipped with rich interfaces, it supports network functionality and allows for remote upgrades after networking.
Technical Parameter:
|
Model |
BKI5800 |
|
Throughput |
600T/H |
|
Principle |
Magnetic particle enzymatic chemiluminescence |
|
Modes of Operation |
Random, batch and STAT |
|
Separation Method |
Magnetic separation technology |
|
Sample Positions |
350pcs(Each position could be used as an emergency position) |
|
Reagent Positions |
50pcs(2-8℃ refrigeration) |
|
Incubation Positions |
238pcs |
|
Time to 1ˢᵗ Result |
18min |
|
Sample Volume |
10~200μl |
|
Detection Precision |
CV≤3% |
|
Carry-over Rate |
≤10⁻⁵ |
|
Correlation Coefficient |
r≥0.99 |
|
Calibration Type |
6/7-point calibration |
|
Software System |
Comes with a screen, windows system; Bi-direction, support HL7 protocol; Intuitive user interface; Intelligent data management |
|
Interface |
TCP/IP Network interface |
|
Other Function |
Sample barcode scanning, reagent RFID, vertical anti-collision needle, liquid level detection, intelligent alarm, automatic dilution function, automatic retesting, and clot detection. |
|
Power Supply |
AC110/220V, 50/60Hz, 1550VA |
|
External Size (W*D*H) |
972*1225*1495mm; 1505*1225*1245mm |
|
Net Weight |
160kg; 500kg |
|
Package Size (W*D*H) |
1410*1350*1170mm; 1685*1410*1460mm |
|
Gross Weight |
235kg; 600kg |
Download:31 Automatic Chemiluminescence Immunoassay System BKI2200&Automatic Chemiluminescence Immunoassay System BKI5800.jpg32 Automatic Chemiluminescence Immunoassay System BKI2200&Automatic Chemiluminescence Immunoassay System BKI5800.jpg
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
