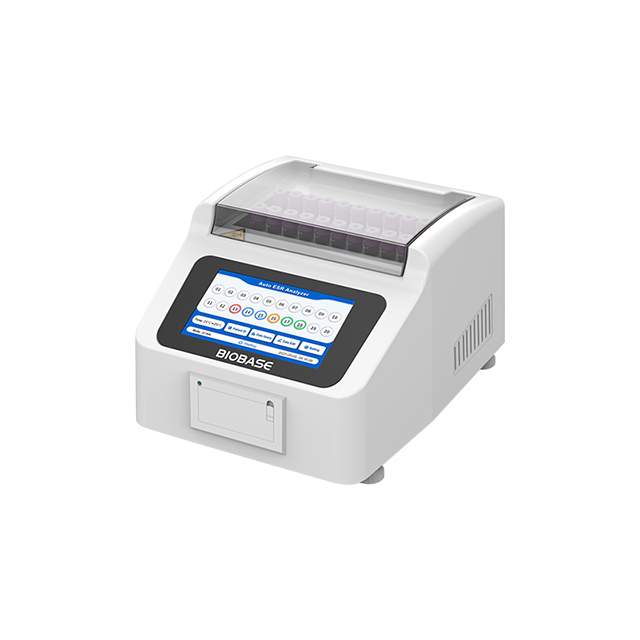

BIOBASE Auto ESR Analyzer
Product overview
Application: It adopts optical sensor and infrared detection technology to automatically scan the sedimentation process of red blood cells, assisting in the assessment of inflammatory conditions, infections, tissue injuries and other disease states. It is suitable for hospitals at all levels, centers for disease control, clinical laboratories and other institutions.
Key features
- Product Description
Applications
- Clinical laboratories and diagnostic workflows
- Hospitals and healthcare facilities
- Blood banks and transfusion services
- Clinical, analytical, screening, or diagnostic laboratory workflows using the selected configuration
Technical specifications
- Product Description
- Brochure
Features:
1. 7.0-inch color touch-screen for real-time display of sample status.
2. Rapid testing with throughput of 60 samples per hour.
3. Random sample-insertion function, enabling on-demand testing.
4. Built-in thermal printer to print ESR values and dynamic ESR curves.
5. High-precision measurement via infrared-optical detection; automatic temperature compensation, hematocrit compensation and K-value conversion of ESR equation for test-result output.
6. Equipped with USB and Type-C interfaces as well as supporting host-computer software; supports uploading test results to LIS/HIS systems.
7. Power-failure protection function for automatic saving of test results; provides sample-abnormality alarm and logging functions.
8. Height-adjustable feet with bubble level gauge to guarantee measuring accuracy.
Technical Parameters:
|
Model |
BK-ESR20E |
|
Test Item |
Determination of Erythrocyte Sedimentation Rate |
|
Analysis Time |
20 minutes |
|
Throughput |
Max. 60 tests per hour |
|
Analysis Channels |
20 (20 samples loaded for simultaneous analysis) |
|
Loading Mode |
On-demand measurement / Random access |
|
Data Storage |
20000 records |
|
Temperature Correction |
Automatic correction to results at 18℃ |
|
Sample Requirement |
Whole blood with EDTA-K2 tube(2.0~3.0mL) |
|
Accuracy |
Correlation coefficient R≥0.95 compared with Westergren method |
|
Repeatability |
SD≤1.5mm/h(ESR≤10 mm/h); CV≤15%(ESR＞10mm/h) |
|
Channel Consistency |
SD≤1.5mm/h(ESR≤10 mm/h); CV≤15%(ESR＞10mm/h) |
|
Display |
7.0-inch color touch-screen |
|
Communication Interface |
USB, Type-C (support data upload to LIS/HIS) |
|
Power Supply |
AC100~240V 50/60Hz, 50VA |
|
External Size(W*D*H) |
284*355*208mm |
|
Net Weight |
6.3kg |
|
Packing Size(W*D*H) |
339*544*249mm |
|
Gross Weight |
9.4kg |
Download:77-78 CoaguVet System CL1000Vet & Auto ESR Analyzer.jpg
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
