Features

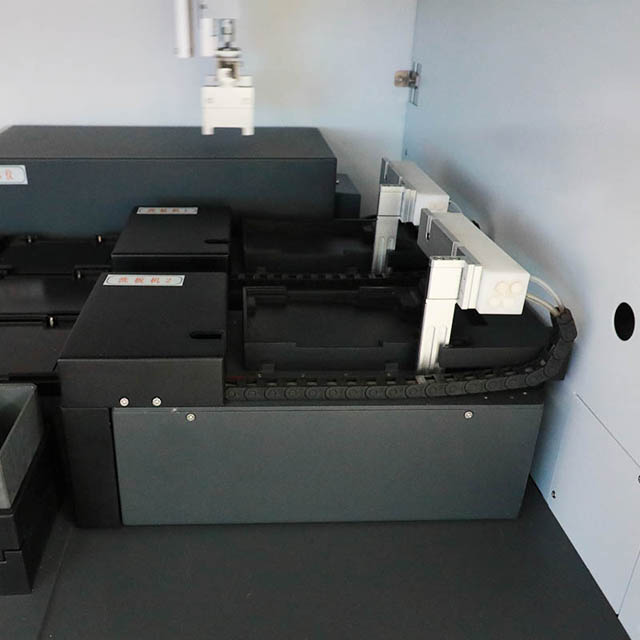

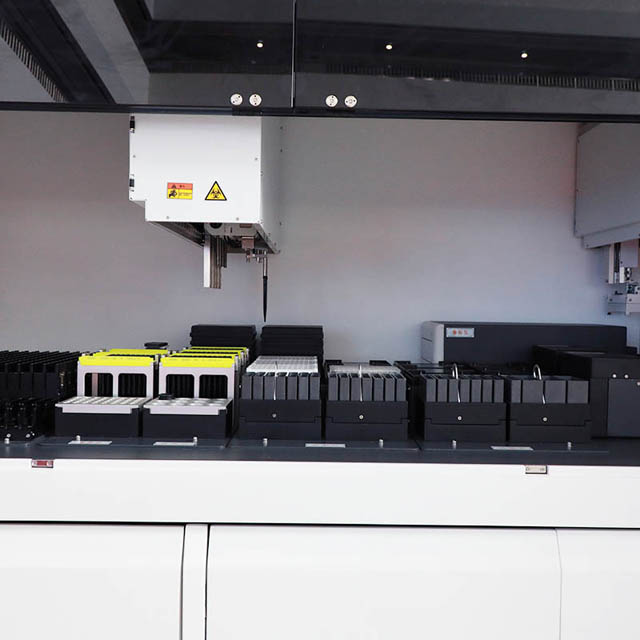

Auto ELISA Processor BIOBASE4001 is a fully automatic detection equipment that integrates sample addition, incubation, shaking, washing, and reading.

Estimated equipment price only. Shipping, import duties, installation, and logistics are additional and vary by destination and shipping method. We will contact you to confirm the total cost before processing your order.

SKU: BIOBASE-CBA4B8BE49 Category: ELISA Tags: BIOBASE, Clinical&Analytical Instrument, ELISA, laboratory equipment, Medical Equipment Brand: BIOBASE

Scientific China

Store

Scientific China

Store

People Also Viewed

Shipping

Shipping Countries: United States (US)

Additional information

Product Category	Clinical&Analytical Instrument > ELISA

Questions & Answers

Product Enquiry

Description

Auto ELISA Processor BIOBASE4001 is a fully automatic detection equipment that integrates sample addition, incubation, shaking, washing, and reading. It is widely used in hospital laboratories, disease prevention and control centers, blood centers, and blood banks, animal and plant inspection and quarantine institutions, scientific research institutions, university laboratories and other places.

Technical specifications

Features:

1. Adopt the principle of pressure type liquid detection.

2. With TIP detection, clot detection function.

3. High-precision pipetting, the lowest volume can reach 5μl.

4. Position sensing, real-time monitoring of gripper status.

5. Multi-spacing and multi-strength adjustable grippers can be adapted to grasp and place microplates and plate covers of different sizes.

6. Dual thread control, can run simultaneously with the sampling arm without interfering with each other.

Technical Parameters:

Model	BIOBASE4001
Sample&Reagent Unit	Sample Racks	12*16 push-pull sample rack with detection
Sampling Channel	4 channels
Liquid Level Detection	Air pressure level detection, clot detection function
Tip	1000μl, 5 Tip racks
Pipetting	5μl~1000μl
Pipetting Precision	100μl: CV≤1.0%, Accuracy≤2.5% 1000μl: CV≤0.5%, Accuracy≤1.0%
Reagent Position	6 reagent racks, reagent tanks with detection
Washing Unit	Washer	2 units
Washing Head	16-channel(32-pin), double row cleaning, hanging installation, with leakage recovery
Injection Uniformity	CV<1.5%
Washing Residual	<1μl

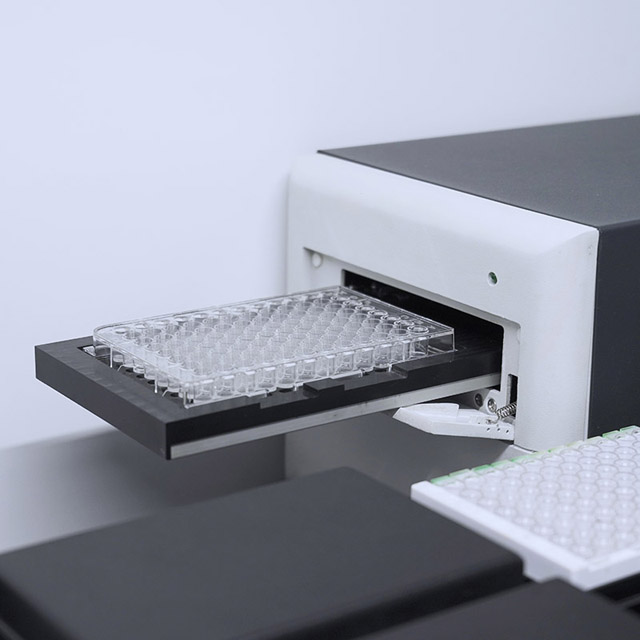

Reading Unit	Reading Channels	8 independent photometric channels, mono and dichromatic reading
Linear Range	0.000~3.000Abs
Repeatability	CV≤1.0%
Stability	≤±0.003Abs
Optical Filters	4 standard filters(405, 450, 492, 630nm) Total 10 filters positions
Reading Accuracy	≤±0.02Abs from 0.0 to 1.0OD ≤±0.03Abs from 1.0 to 2.0OD
Sensitivity	≥0.01mg/L
Channel Difference	≤0.02Abs
Incubation Unit	Incubators	12 shaking incubators
Cover Positions	2(12 covers)
Heating Method	Dry heating with cover
Shaking Function	Horizontal circular oscillation, 1~3 levels adjustable, amplitude 2.5mm
Temperature Range	RT to 60 °C
Temperature Uniformity	0.5℃
Temperature Fluctuation	±0.5℃
Data Management	Software	Above Windows 7 system
LIS System	Bi-direction, support HL7 protocol
Results	Absorbance and results reviewable by software
Printer	External optional
Built-in Scanner	Optional
Other Function	Biosafety Protection	Optional(Negative pressure working zone, HEPA filter)
Disinfection	UV lamp
Lighting	LED
IAP Function	Firmware can be upgraded online at any time
Working Condition	Power Supply	AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)
Temperature	10~40℃
Humidity	30~80%
Size&Weight	External Size (WDH)	17751901683mm
Net Weight	445kg
Package Size(WDH)mm	Machine: 19459501150 Base Stand: 1945950995 Accessories: 1370930530
Gross Weight(kg)	Machine: 364.5 Base Stand: 208.5 Accessories: 97
