BIOBASE Auto ELISA Processor BIOBASE2001 | Estimated Price: US$19,400 | Request a Quote
Available in stock
Auto ELISA Processor BIOBASE2001 is a fully automaticdetection equipment that integrates sample addition,incubation, shaking, washing, and reading. lt is widely usedin hospital laboratories, disease prevention and controlcenters, blood centers, and blood banks, animal and plantinspection and quarantine institutions, scientific researchinstitutions, university laboratories and other places.
Estimated equipment price only. Shipping, import duties, installation, and logistics are additional and vary by destination and shipping method. We will contact you to confirm the total cost before processing your order.
SKU: BIOBASE-B816EC0017
Category: ELISA
Tags: BIOBASE, Clinical&Analytical Instrument, ELISA, laboratory equipment, Medical Equipment
Brand: BIOBASE
Report Abuse
Scientific China
Store
Scientific China
StorePeople Also Viewed
-
BIOER Vibrio Cholerae Nucleic Acid Detection Kit (Fluorescence PCR) — Estimated US$422.4 / 48T
$422.40
-
BIOER Dengue NS1 Antigen Rapid Test Kit (Colloidal Gold Method) — Estimated US$96.25 / 25T
$96.25
-
BIOER BioRT Master HiSensi cDNA First Strand Synthesis kit — Estimated US$220 / 100T
$220.00
-
BIOER BioRT Master One Step RT-PCR Kit Ⅲ (with dye) — Estimated US$220 / 100T
$220.00
-
BIOER Dengue Virus/Zika Virus/Chikungunya Virus Nucleic Acid Detection Kit (Fluorescence PCR) — Estimated US$316.8 / 24T
$316.80
-
BIOER BioEasy Master Mix (SYBR Green) — Estimated US$264 / 200T
$264.00
Shipping
Additional information
| Product Category | Clinical&Analytical Instrument > ELISA |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
Auto ELISA Processor BIOBASE2001 is a fully automaticdetection equipment that integrates sample addition,incubation, shaking, washing, and reading. lt is widely usedin hospital laboratories, disease prevention and controlcenters, blood centers, and blood banks, animal and plantinspection and quarantine institutions, scientific researchinstitutions, university laboratories and other places.
Technical specifications
Features:
1. Adopt the principle of pressure type liquid detection.
2. With TIP detection, clot detection function.

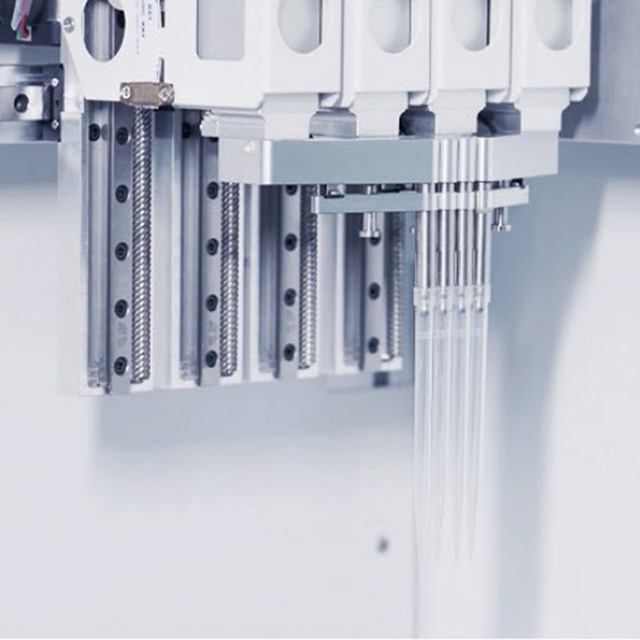

3. High-precision pipetting.
4. Position sensing, real-time monitoring of gripper status.

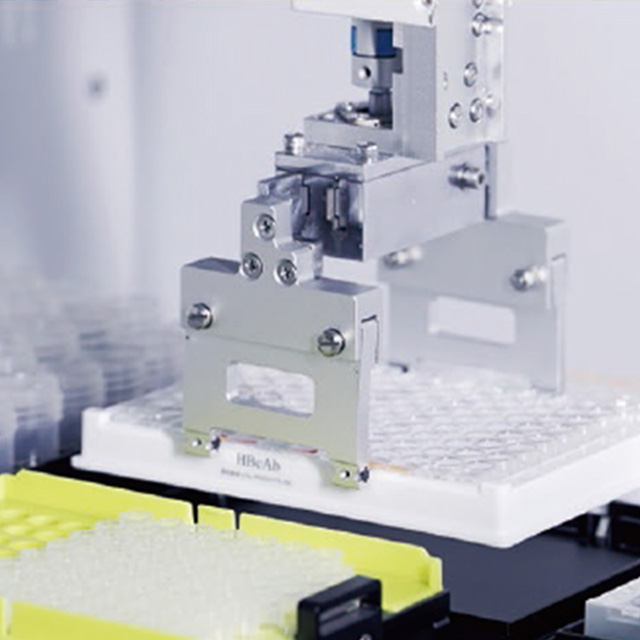

5. Multi-spacing and multi-strength adjustable grippers can be adapted to grasp and place microplates and plate covers of different sizes.
6. Dual thread control, can run simultaneously with the sampling arm without interfering with each other.
|
Model |
BIOBASE2001 |
|
|
Sample&Reagent Unit |
Sample Racks |
6*20 push-pull sample rack with detection |
|
Sample Channel |
2 channels |
|
|
Liquid Level Detection |
Air pressure level detection, clot detection function |
|
|
Tip |
1000μl, 3 Tip racks |
|
|
Pipetting |
10μl~1000μl |
|
|
Pipetting Precision |
100μl: CV≤1%, Accuracy≤2.5% 1000μl: CV≤0.5%, Accuracy≤1% |
|
|
Reagent Position |
4 reagent racks, reagent tanks with detection |
|
|
Washing Unit |
Washer |
1 unit |
|
Washing Head |
16-channel(32-pin), double row cleaning, hanging installation, with leakage recovery |
|
|
Injection Uniformity |
CV<1.5% |
|
|
Washing Residual |
<1μl |
|
|
Reading Unit |
Reading Channels |
8 independent photometric channels |
|
Linear Range |
0.000~3.000Abs |
|
|
Repeatability |
CV≤1.0% |
|
|
Stability |
≤±0.003Abs |
|
|
Optical Filters |
4 standard filters(405, 450, 492, 630nm); Total 10 filters positions |
|
|
Reading Accuracy |
≤±0.02Abs from 0.0 to 1.0OD ≤±0.03Abs from 1.0 to 2.0OD |
|
|
Sensitivity |
≥0.01mg/L |
|
|
Channel Difference |
≤0.02Abs |
|
|
Incubation Unit |
Incubators |
8 shaking incubators |
|
Cover Positions |
1(8 covers) |
|
|
Heating Method |
Dry heating with cover |
|
|
Shaking Function |
Horizontal circular oscillation, 1~3 levels adjustable, amplitude 2.5mm |
|
|
Temperature Range |
RT to 60 °C |
|
|
Temperature Uniformity |
0.5℃ |
|
|
Temperature Fluctuation |
±0.5℃ |
|
|
Data Management |
Software |
Above Windows 7 system |
|
LIS System |
Bi-direction, support HL7 protocol |
|
|
Results |
Absorbance and results reviewable by software |
|
|
Printer |
External optional |
|
|
Built-in Scanner |
Optional |
|
|
Other Function |
Biosafety Protection |
Optional (Negative pressure working zone, HEPA filter) |
|
Disinfection |
UV lamp |
|
|
Lighting |
LED |
|
|
IAP Function |
Firmware can be upgraded online at any time |
|
|
Working Condition |
Power Supply |
AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz( Optional) |
|
Temperature |
10~40℃ |
|
|
Humidity |
30~80% |
|
|
Size&Weight |
External Size(W*D*H) |
Machine: 1273*750*1650mm Base Stand: 1273*750*777mm |
|
Net Weight |
Machine: 226kg Base Stand: 98kg |
|
|
Package Size(W*D*H)mm |
Machine: 1445*920*1130mm Base Stand: 1445*920*1005mm Accessories: 1065*895*510mm |
|
|
Gross Weight(kg) |
Machine: 300kg Base Stand: 172kg Accessories: 83kg |
