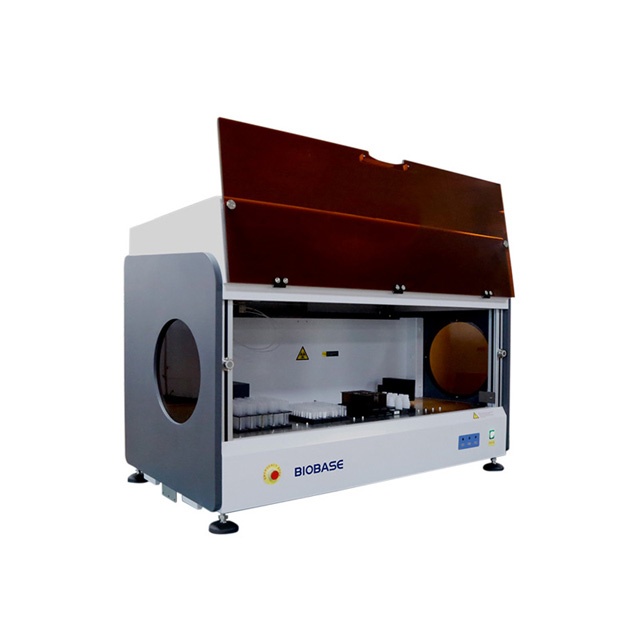

BIOBASE Auto ELISA Processor BIOBASE2000
Product overview
The auto elisa processor is an analytical instrument used in the field of hospital, laboratory. Its main function is to analyze sample pre-processing, sample analysis and data processing.
Key features
- Auto ELISA Processor (BIOBASE2000)
- Brochures
Applications
- Research, medical, and industrial laboratories
- Hospitals and healthcare facilities
- Water quality and environmental testing
- Controlled incubation and culture workflows in life-science and clinical laboratories
- Air-protection, containment, clean-air, or controlled laboratory work
Technical specifications
- Auto ELISA Processor (BIOBASE2000)
- Brochures
Features:
1. 1 robotic arm, 2 pipetting probes(10~1000μl).
2. 4 units 96 well microplates(independent incubating).
3. 1 unit reader&washer(auto reading and washing).
|
Model |
BIOBASE2000 |
|
|
Sample Unit |
Sample Racks |
Standard 192 sample positions(expandable, up to 552) |
|
Pipetting |
10~1000μl |
|
|
Dispensing System |
2 aspirating and dispensing probe( X-Y-Z movement) |
|
|
Reagent Unit |
Reagent Position |
23 reagent racks, editable |
|
Pipetting Range |
10~1000μl, 1μl stepping |
|
|
Pipetting Precision |
(100μl)CV≤1.0% |
|
|
Washing Unit |
Dispensing Time |
4 minutes to whole 96 to microplates |
|
Washing Probes |
Two line 8-nozzle manifolds |
|
|
Wash Containers |
Cleaning fluid(15L), waste water(25L), Buffer 1(5L), Buffer 2(2L), Buffer 3(2L), Buffer 4(2L), with liquid level-sensing, liquid shortage and full alarm |
|
|
Waste Containers |
25L with waste full sensor |
|
|
Washing Residual |
<2μl |
|
|
Reading Unit |
Reading Channels |
8 independent photometric channels, mono anddichromatic reading |
|
Absorbance |
0.0~3.0OD |
|
|
Spectral Range |
400~700nm |
|
|
Optical Filters |
2 standard filters(450, 630nm); 2 more on request (405nm/450nm/492nm/630nm) |
|
|
Reading Accuracy |
±1% from 0~1.5OD, ±2% from 1.5~3.0OD |
|
|
Incubation Unit |
Incubators |
4 independent units |
|
Temperature Range |
RT to 45℃ |
|
|
Temperature Accuracy |
±0.5℃ |
|
|
Data Management |
Software System |
Above Windows 7 system |
|
LIS System |
Bi-direction, support HL7 protocol |
|
|
Results |
Absorbance and results reviewable by software |
|
|
Printer |
External optional |
|
|
Working Conditions |
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 400W |
|
Temperature |
10~30℃ |
|
|
Humidity |
30%~80% |
|
|
Size&Weight |
External Size(W*D*H) |
1235*705*875mm |
|
Net Weight |
146kg |
|
|
Package Size(W*D*H) |
1380*860*1415mm |
|
|
Gross Weight |
220kg |
