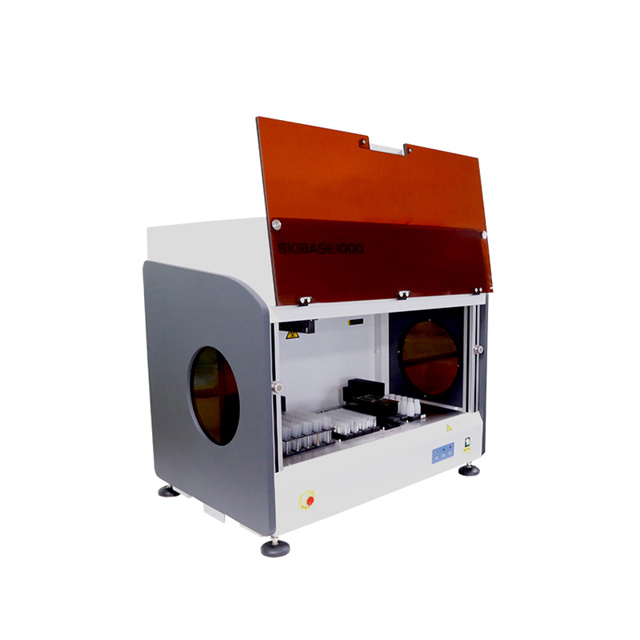

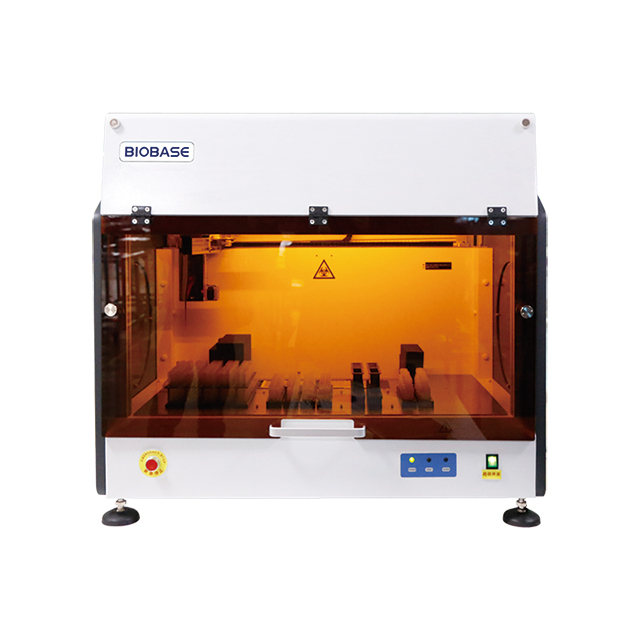

BIOBASE Auto ELISA Processor BIOBASE1000

Model

BIOBASE1000

Sample Unit

Sample Racks

Standard 192 sample positions(expandable, up to 384)

Pipetting

10~1000μl

Dispensing System

1 aspirating-dispensing probe(X-Y-Z movement)

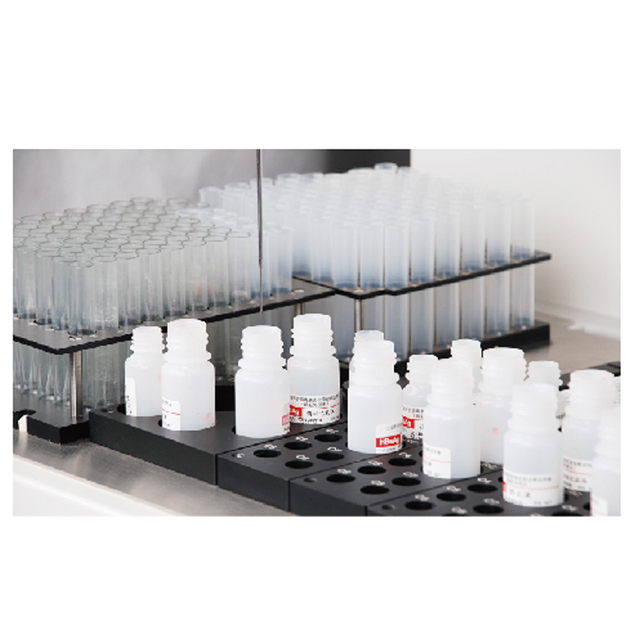

Reagent Unit

Reagent Racks

Universal reagent position: Standard 6 universal reagent positions(expandable, up to 32);

Original reagent bottle: Standard 20 reagent bottles positions(expandable, up to 80)

Pipetting Range

10~1000μl, 1μl stepping

Pipetting Precision

(100μl) CV≤1.0%

Dispensing Time

5 minutes to whole 96 well microplates

Incubation Unit

Incubation

2 independent incubators

Temperature Range

RT to 45°C

Temperature Accuracy

±0.5°C

Washing Unit

Washing Probes

Two line 8-nozzle manifolds

Wash Containers

2 wash buffers 2L, 1 distilled water, 1 waste water

Washing Residual

≤2μl/well

Reading Unit

Reading Channels

8 independent photometric channels, mono and dichromatic reading

Absorbance

0.0~4.0 OD

Spectral Range

400~750nm

Optical Filters

2 standard filters(450, 630nm);

2 more on request(405nm/450nm/492nm/630nm)

Data Management

Software

Windows 7/10

LIS System

Bi-direction, support HL7 protocol

Results

Absorbance and results reviewable by software

Printer

External optional

Working Conditions

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 400W

Temperature

10~30℃

Humidity

40%~70%

Size&Weight

External Size(W*D*H)

935*665*860mm

Net Weight

112kg

Package Size(W*D*H)

1115*920*1398mm

Gross Weight

180kg
