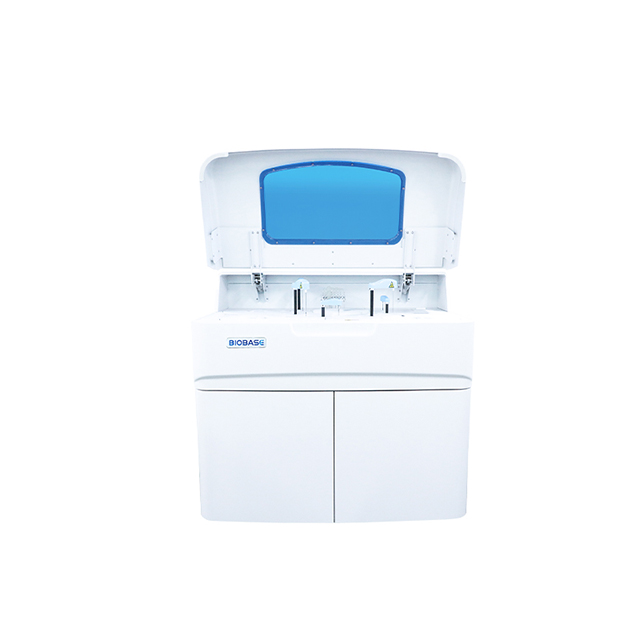

BIOBASE Auto Chemistry Analyzer BK-600

Model

BK-600

Overall

Performance

Throughput

600 tests/hour

Analysis Method

End-point, Fixed-time, Rate(Kinetic), Turbidimetry

Certification

CE, FDA, ISO9001, ISO13485

Sample&Reagent System

Sample Positions

90 sample positions, built-in barcode system available

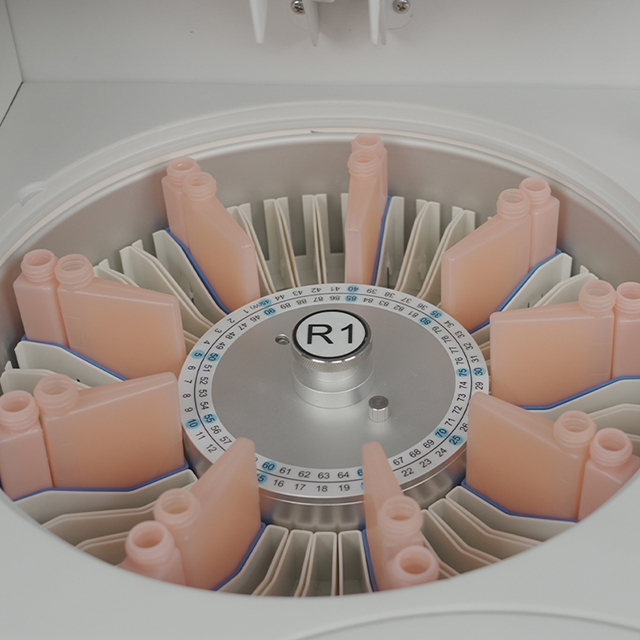

Reagent Positions

180 refrigerated reagent positions(R1: 90&R2: 90)

Sample Volume

1~70μl

Reagent Volume

10~350μl

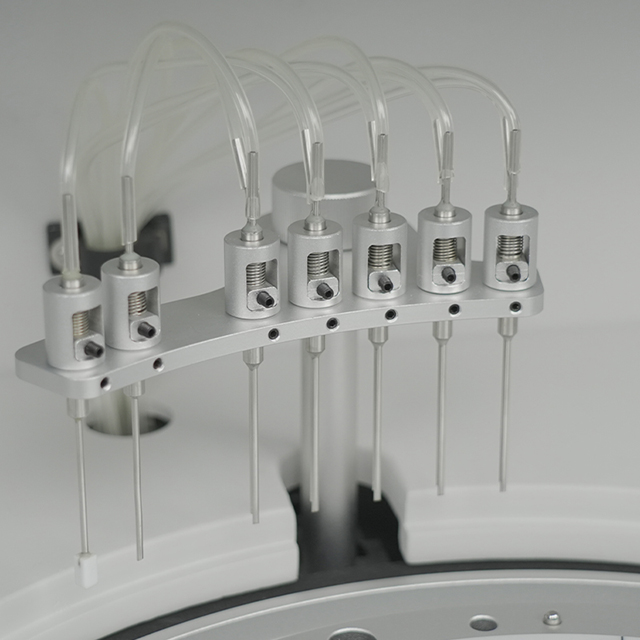

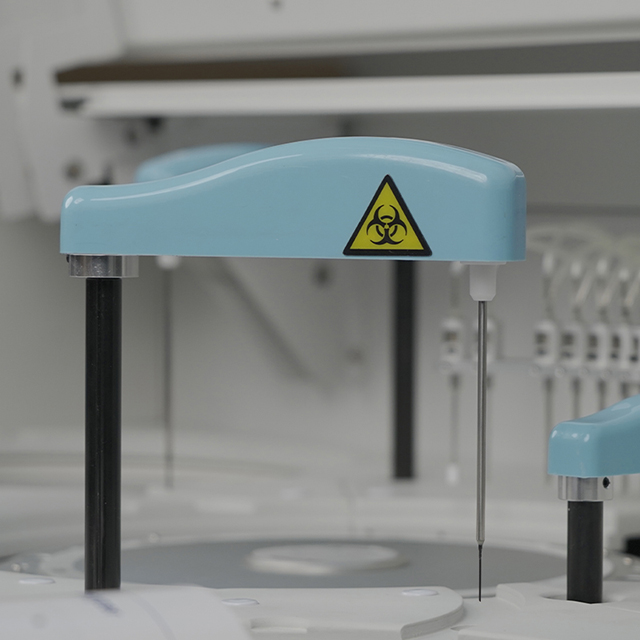

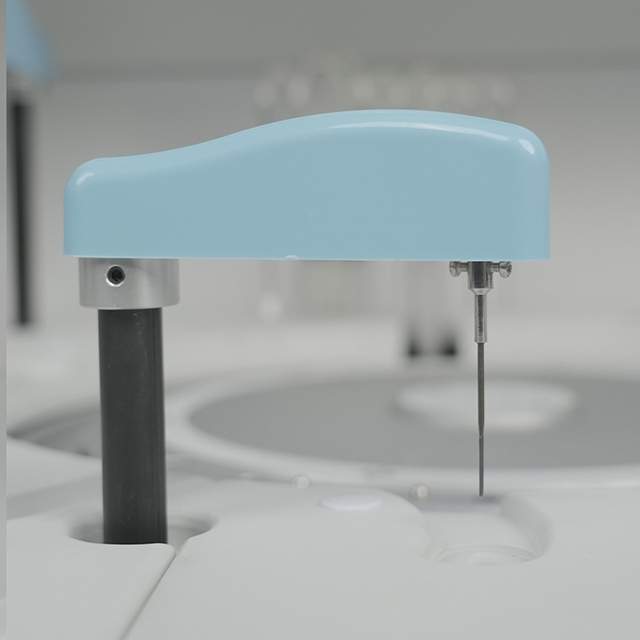

Teflon coating, with anti-colision function, liquid level detection function

Probe Washing

Automatic washing interior and exterior

Reagent Cooling

2~8℃

Reaction System

Temperature Control

37±0.1℃, real-time monitoring

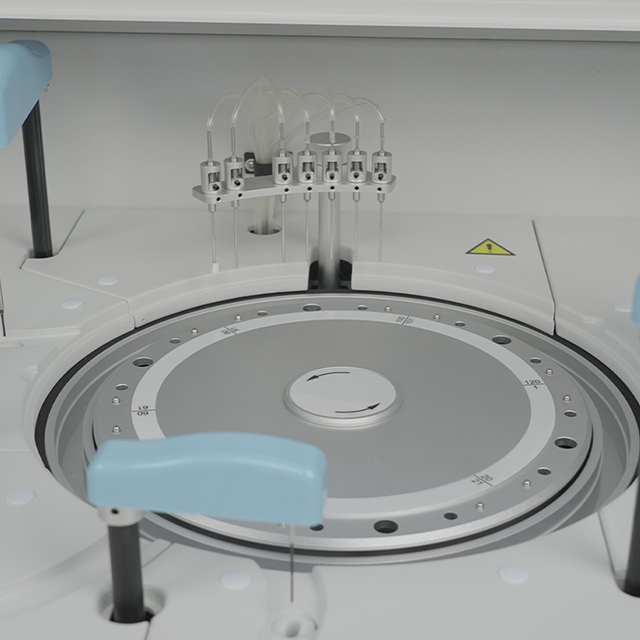

Cuvettes

120 reusable cuvettes, optical length 6mm

Mixer Probe

Independent stirring

Washing

Automatic cuvettes washing

STAT Function

YES

Optical System

Light Source

12V/20W halogen lamp

Spectrophotometry

Post-spectral spectrophotometry

Wavelength

340~ 800nm

Absorbance

0~3.5Abs

Calibration&QC

Calibration

1-point, 2-point and multipoint, factor, Spline, Logit-4P, Logit-5P, Polygon

Quality Control

Inserting quality control at random

Data Management

Software

Windows 7/8/10

LIS System

Available

Interface

TCP/IP network interface

Printer

External optional, multiple reporting mode available

Working Conditions

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 800VA

Temperature

15~30℃

Water Consumption

Deionized water: 20L/H

Humidity

40%~85%

Size&Weight

External Size(W*D*H)

1170*775*1145mm

Net Weight

216kg

Package Size(W*D*H)

1358*938*1387mm

Gross Weight

281kg

Accessory Package Size

550*430*860mm

Accessory Gross Weight

20kg
