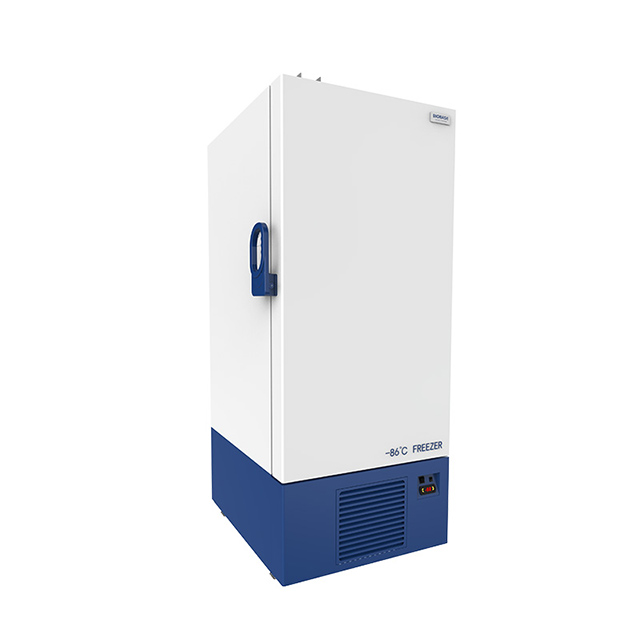

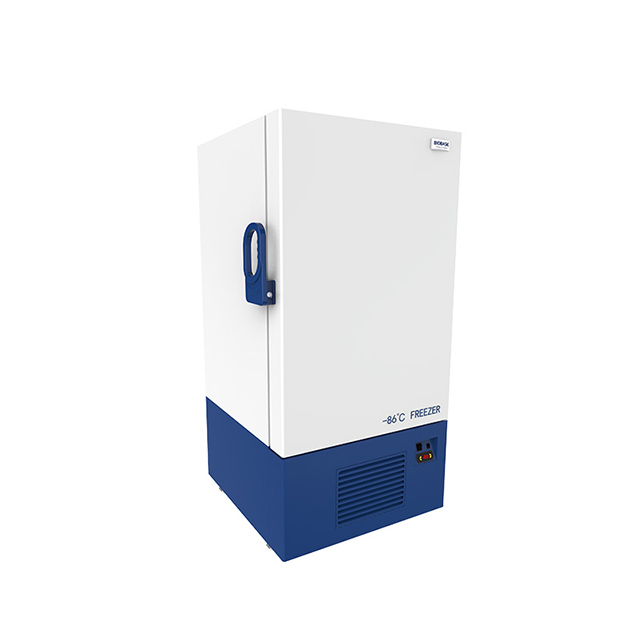

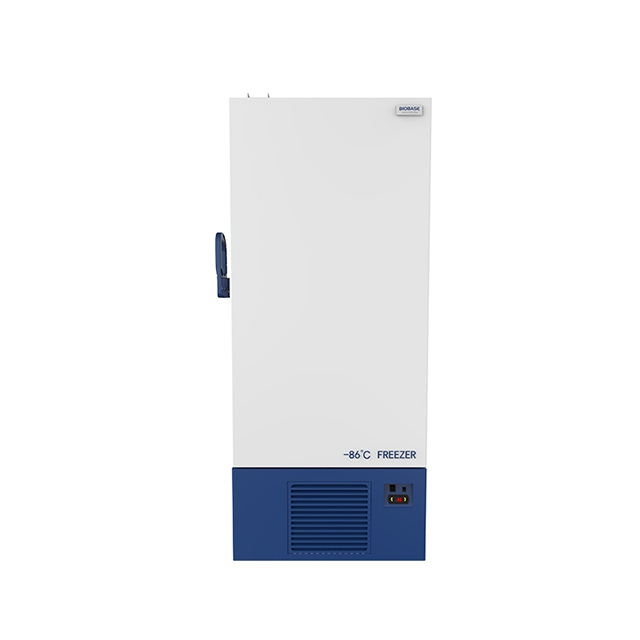

BIOBASE -86℃ Freezer 158L 348L
Available in stock
BIOBASE -86℃ Freezer 158L 348L is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Lab & Medical Cryogenic Refrigeration Equipment > ﹣86℃ Freezer |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
BIOBASE -86℃ Freezer 158L 348L
Product overview
The -86 ℃ freezer is a kind of ultra-low temperature refrigeration equipment, which is widely used in scientific research, medical treatment, biological engineering and other fields. Its main function is to provide an extremely low temperature environment to preserve temperature-sensitive samples and materials.
Key features
- Product Description
- Brochures
Applications
- Professional laboratory, medical, research, or industrial workflows requiring this equipment class
- Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials
Technical specifications
- Product Description
- Brochures
Technical Parameters:
|
Model |
BDF-86V168 |
BDF-86V348 |
|
Capacity |
168L |
348L |
|
Temp. Range |
-40~-86℃ |
|
|
Temp. Accuracy |
0.1℃ |
|
|
Temp. Uniformity |
±4℃ |
|
|
Temp. Stability |
≤6℃ |
|
|
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) |
≤15min |
|
|
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) |
≤4h |
|
|
Control System |
Microprocessor control |
|
|
Display |
LED |
|
|
Alarm |
High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm |
|
|
Refrigeration Type |
Direct-cooling |
|
|
Refrigerant |
R600a/R1150/R14, 137g |
R600a/R1150/R14, 193g |
|
Compressor |
International famous brand compressor/1 |
|
|
Condenser&Evaporator |
Micro channel condenser; built-in coil type, copper pipe |
Built-in coil type copper pipe; copper tube and aluminum fin |
|
Defrost |
Manual defrost |
|
|
Construction |
Polyurethane cyclopentane foam |
|
|
Material |
Internal Material |
SUS304 stainless steel |
|
External Material |
Sprayed steel plate |
|
|
Door |
Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3 |
Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*2 |
| Noise | 55dB(A) | |
|
Consumption |
650W Apparent power: 858VA |
|
|
Power Supply |
AC220V, 50Hz (Standard); 220V, 60Hz, 110V, 60Hz (Optional) |
|
|
Casters |
Yes |
|
|
Shelf |
2 |
3 |
|
Standard Accessory |
Test port*2 |
|
|
Optional Accessory |
RS485 interface, USB interface, liquid nitrogen backup system, temperature recorder |
|
|
Internal Size(W*D*H) |
465*455*820mm |
490*612*1150mm |
|
External Size(W*D*H) |
844*807*1594mm |
869*989*1924mm |
|
Package Size(W*D*H) |
1000*970*1790mm |
1020*1180*2130mm |
|
Net Weight |
168kg |
232kg |
|
Gross Weight |
221kg |
300kg |
Download: 46-47 -86℃ Freezer(Undercounter Type) & -86°C Freezer.jpg
Product video
An official product video is attached through the WooCommerce product-video metadata.
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
