BIOBASE 5-Part Hematology Analyzer BK-6500
Available in stock
BIOBASE 5-Part Hematology Analyzer BK-6500 is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Clinical&Analytical Instrument > Auto Hematology Analyzer |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description

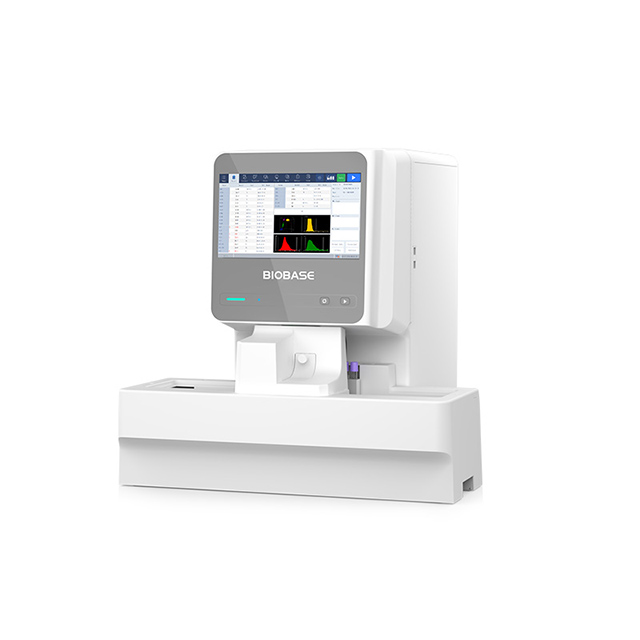

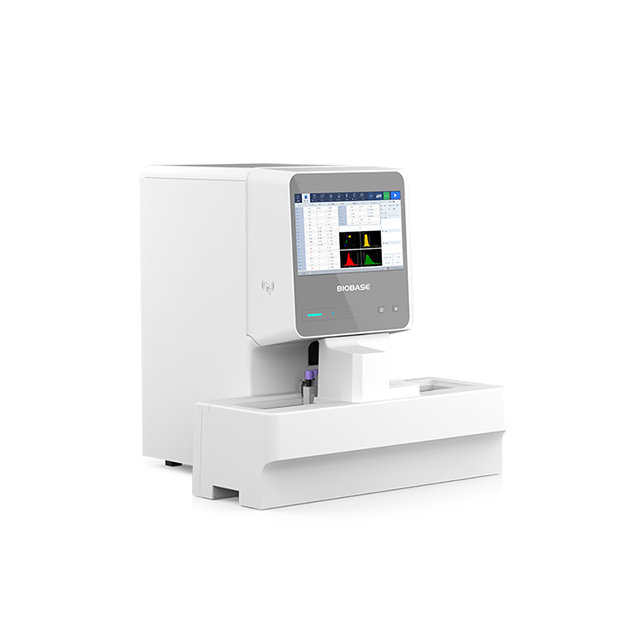

BIOBASE 5-Part Hematology Analyzer BK-6500
Product overview
The 5-part hematology analyzer is an in vitro diagnostic device developed based on laser flow cytometry analysis, nucleic acid fluorescence staining and other technologies, which can quantitatively and qualitatively analyze components such as red blood cells, white blood cells and platelets in the blood.
Key features
- Product Description
Applications
- Blood banks and transfusion services
- Clinical, analytical, screening, or diagnostic laboratory workflows using the selected configuration
Technical specifications
- Product Description
- Brochure
Features:
1. Throughput 70t/h.
2. 14 inch touch screen.
3. 50 sample positions, automatic loading, mixing and sampling.
4. Tri-angle laser scatter+flow cytometry method+impedance method for counting.
5. 3D holographic scattergram displays the accurate 5 part differentiation of WBC.
6. Large storage capacity: 300,000 results(including histogram, scattergram, patient information).
|
Model |
BK-6500 |
|||
|
Throughput |
70 tests/hour |
|||
|
Assay Items |
5 parts, 25 parameters, 3 histograms(WBC/BASO, RBC, PLT), 3D scattergram |
|||
|
Principle |
Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test |
|||
|
Test Mode |
CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted |
|||
|
Sample Volume |
CBC+DIFF mode: ≤20μl CBC mode: ≤10μl |
|||
|
Parameters |
25 reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 6 research parameters: ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC# |
|||
|
Performance |
Item |
Linearity Range |
Carry Over |
CV |
|
WBC |
0~300.0*10^9/L |
≤0.5% |
≤2.0% |
|
|
RBC |
0~8.00*10^12/L |
≤0.5% |
≤1.5% |
|
|
HGB |
0~260g/L |
≤0.5% |
≤1.5% |
|
|
PLT |
0~3000*10^9/L |
≤1.0% |
≤4.0% |
|
|
Storage |
Up to 300,000 results including histograms, scattergrams and patient information | |||
|
Display |
14 inch touch screen, resolution 1366*768 |
|||
|
Interface |
4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | |||
| System | LINUS system | |||
|
Loading Position |
50 sample positions |
|||
|
Power Supply |
AC100~240V, 50/60Hz; 300VA |
|||
|
Package Size(W*D*H) |
Main Machine: 725*665*700mm Accessories: 950*500*580mm |
|||
|
Gross Weight |
Main Machine: 60kg Accessories: 27.6kg |
|||
|
Reagent Package Size(W*D*H) |
330*330*330mm; 330*230*230mm; 330*230*230mm |
|||
|
Reagent Gross Weight |
22kg, 2kg, 1kg |
Download: 57-58 Fluorescence Immunoassay Reagent & 5-Part Auto Hematology Analyzer BK-6500.jpg
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
